Description
Tired of shared buttons spreading germs in high-traffic spots? The Viking E-30TF-IP changes that with a simple wave of your hand.

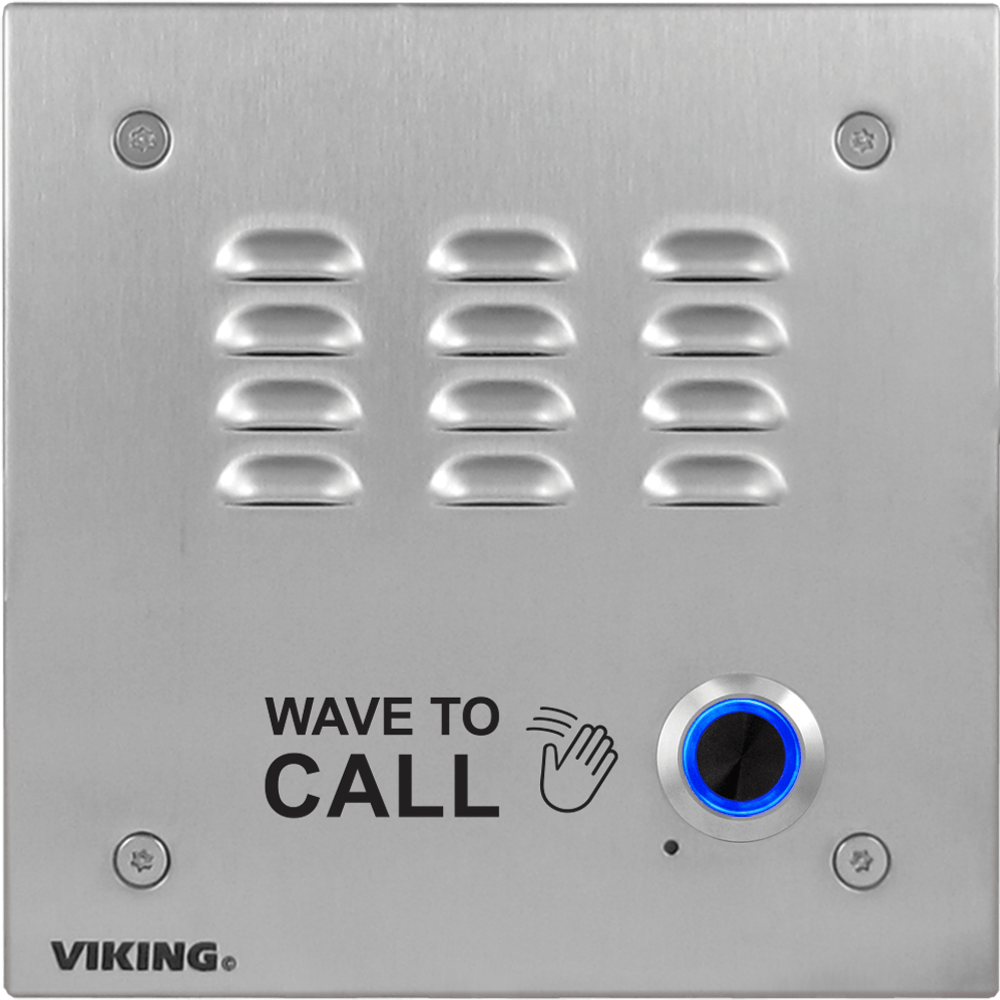

This rugged stainless steel SIP VoIP entry phone uses a touch-free motion sensor (adjustable 1–4 inches) to start a call instantly. It delivers crystal-clear hands-free two-way audio, controls doors or gates with its built-in 2-amp relay, and runs on standard PoE—no extra power supply needed.
Built for tough environments from -40°F to 140°F, it’s ideal for gates, parking ramps, lobbies, medical centers, ATMs, stadiums, and more. Program it remotely or with the included software, and it even cycles through up to 5 backup numbers if the first line is busy.
The Telecom Spot Expert Review
The motion sensor works exactly as advertised—fast, adjustable, and reliable even in bright sunlight or dusty areas. The Automatic Noise Canceling (ANC) keeps conversations clear next to busy roads or loud machinery. Marine-grade 316 stainless steel with laser-etched graphics looks sharp for years and resists corrosion.
Our customers in medical offices and public buildings especially love the touch-free design for reducing germ spread. Setup is straightforward for any IT tech: plug in PoE, use the included programming software or program from any phone, and you’re done.
Expert Take: If your location sees heavy public use and you need both security and cleanliness, this phone beats traditional push-button models hands-down. Pair it with Viking’s optional RC-4A Secure Relay Controller for extra protection against tampering.
Key Features
- Touch-Free Calling — Wave your hand over the adjustable motion sensor (1–4 inches) to activate—no buttons to touch or clean
- Hands-Free Communication — Loud 90 dB speaker with Automatic Noise Canceling for clear calls in noisy environments
- Built-In 2-Amp Relay — Controls door strikes, magnetic locks, or gate openers (or Viking SL-2 strobe light)
- SIP VoIP Ready — Works with any standard SIP system; supports Outbound Proxy, Authentication, Peer-to-Peer, and VLAN
- PoE Powered — IEEE 802.3af Class 1 (<4 watts) — simple single-cable install
- Durable Construction — Marine-grade 316 stainless steel faceplate with laser-etched graphics and T-10 Torx security screws
- Reliable Operation — Dials up to 5 programmable numbers and automatically cycles through backups on busy or no-answer
- Wide Temperature Range — Works from -40°F to 140°F (-40°C to 60°C)
- Easy Programming — From any touch-tone phone, PC, or remotely; network downloadable firmware
- LED Status — Blue when idle, flashing green while dialing, solid green when answered
- Flush or Surface Mount — Includes rough-in box for flush mount; optional VE-5×5 box for surface mount
- Diagnostics — Built-in tests for mic, speaker, and relay
Technical Specifications
- Power: PoE Class 1, IEEE 802.3af (<4 watts)
- Audio Codecs: G.711u, G.711a, G.722
- Maximum Sound Pressure: 90 dB SPL @ 1 meter
- Network: 10/100 Base-T, auto cross-over, SIP 2.0 (RFC3261)
- Connections: (1) RJ45, (3) gel-filled butt connectors
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Humidity: 5% to 95% non-condensing (standard); up to 100% with EWP version
- Dimensions: See Viking installation guide (flush mount with included rough-in box)
- Regulatory: FCC Part 15, Canada ICES-3 Class A, CE
- Security Screws: T-10 Torx
