Description
Need a tough, secure way for visitors to call inside from your gate, parking lot, or lobby? The Viking E-32T-SS-IP delivers crystal-clear handsfree VoIP intercom communication that works reliably with your existing SIP phone system.

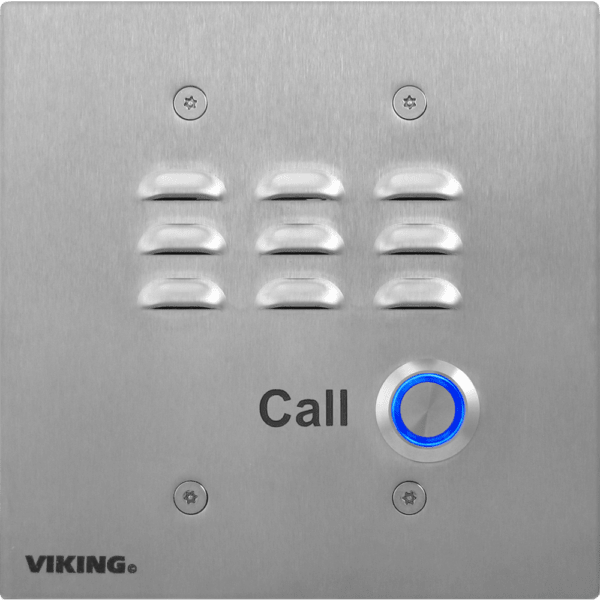

This rugged stainless steel unit mounts flush in a standard double-gang box and stands up to harsh weather and tampering. It uses secure SIP over TLS encryption, powers easily over PoE, and includes a built-in 2-amp relay so you can unlock doors or gates right from the call. Setup is simple through any web browser—no special software required.
Perfect for businesses, medical centers, stadiums, and apartment buildings that want professional entry control without the hassle.
What we love: The marine-grade 316 stainless steel faceplate with laser-etched graphics stays looking sharp for years, even outdoors. The blue backlit call button is easy to spot at night, and it flashes during dialing so users know the call is going through. Setup takes minutes once connected to your network—program numbers, upload custom voice announcements, and test the mic/speaker/relay all from the built-in web UI.
Our customers in high-traffic areas (like parking ramps and medical facility entrances) especially appreciate the extended temperature range and the ability to roll through backup numbers if the first line is busy. Pair it with an optional RC-4A network relay for even more remote control options.
Expert Take: If you're moving from analog entry phones to a full SIP system, this model makes the upgrade painless and future-proof. It's not the cheapest intercom out there, but the build quality and security features pay off quickly in reduced maintenance and peace of mind. Highly recommended for anyone who needs reliable, secure access control that just works.
Key Features
- Secure SIP Communication — Supports SIP over TLS and optional SIPS for encrypted calls compatible with most VoIP providers and PBX systems.
- Vandal-Resistant Design — Heavy-duty 316 stainless steel faceplate with laser-etched graphics and T-10 Torx security screws to deter tampering.
- Built-in 2-Amp Relay — Control door strikes, magnetic locks, or optional SL-2 strobe lights directly from the unit.
- PoE Powered — Class 2 Power over Ethernet (<6.5 Watts) means no separate power supply needed—simpler wiring and lower installation cost.
- Handsfree Operation — Clear two-way audio with volume adjustments and support for G.711u, G.711a, and wideband G.722 codecs. Maximum 90 dB SPL output.
- Easy Remote Programming — Built-in web user interface works from any browser. Upload custom wave files for greetings or alerts. Network-downloadable firmware keeps it updated.
- Smart Call Handling — Automatically cycles through backup phone numbers on busy or no-answer. Blue LED flashes during dialing and stays lit when connected.
- Tough Environment Rating — Operates from -40°F to 140°F with 5%–95% non-condensing humidity—great for outdoor or unheated areas.
- Simple Mounting — Flush mounts in a standard double-gang electrical box (not included) or surface mounts with optional VE-5x5 box.
Technical Specifications
- Power: PoE Class 2 (< 6.5 Watts)
- Network: 100/1000 Base-T Ethernet (RJ45) with auto crossover, IEEE 802.3af PoE, SIP 2.0 RFC3261
- Audio: G.711u, G.711a, G.722 codecs; 90 dB SPL maximum @ 1 meter; mic & speaker volume adjustment
- Relay: 2 Amp contacts for door/gate control
- Dimensions: 5” W x 5” H x 2.25” D (127 mm x 127 mm x 57 mm)
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Humidity: 5% to 95% non-condensing
- Connections: 1x RJ45 + 3x gel-filled butt connectors
- Mounting: Flush in standard double-gang box or surface with optional VE-5x5
- Compliance: FCC Part 15, Canada ICES, SIP compliant
