Description

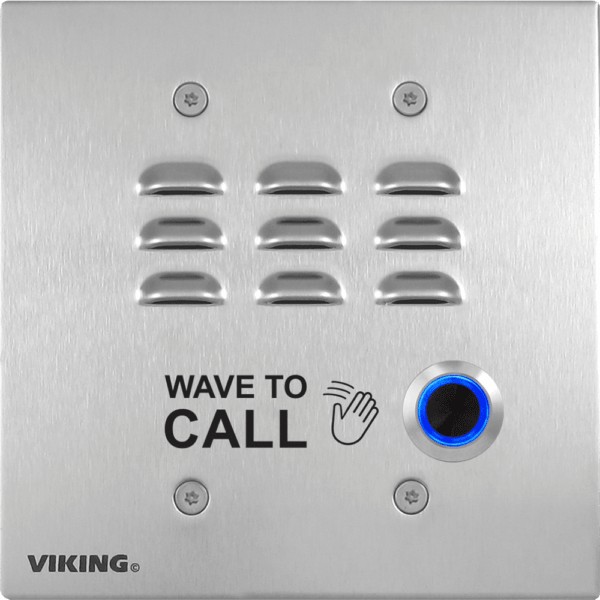

Tired of push-button entry phones that spread germs and wear out in bad weather? The Viking E-32TF-IP-EWP changes the game with a simple wave of your hand to start a hands-free call.
This rugged SIP VoIP entry phone delivers crystal-clear communication over your existing network using Power over Ethernet (PoE). Built with Enhanced Weather Protection (EWP) to handle rain, snow, and condensation, it’s ideal for outdoor gates, parking ramps, medical facilities, lobbies, and public access points.
Just wave 1–4 inches over the motion sensor, and it dials up to five programmable numbers while the bright LED guides you—blue when idle, flashing green while dialing, and solid green when connected. A built-in 2-amp relay lets you unlock doors or gates right from the call. No more “push-to-talk” hassle—VoIP makes it naturally hands-free.
The Telecom Spot Expert Review
The touch-free motion sensor isn’t just a gimmick—it genuinely reduces contact in high-traffic spots like hospitals, stadiums, and office lobbies. We’ve seen facilities cut cleaning time and improve hygiene ratings after switching.
The EWP version stands out in outdoor or humid environments. Viking seals the electronics with gaskets, gel-filled connectors, and potted boards so it keeps working through Midwest winters or Texas summers (–40°F to 140°F). Automatic Noise Canceling keeps voices clear even next to busy roads or parking lots.
Setup is straightforward for anyone comfortable with SIP devices. You can program it from a phone, PC, or remotely. The included polling software makes monitoring easy, and network firmware updates keep it current without site visits.
Our take: If you need reliable, low-maintenance access communication that’s future-proof and sanitary, this is one of the smartest choices in Viking’s lineup. It’s not the cheapest option, but the durability and touch-free feature pay for themselves quickly in reduced service calls and happier users.
Key Features
- Touch-Free Operation — Adjustable motion sensor (1–4 inches) activates calls with a simple wave—no buttons to touch or wear out.
- Clear Visual Feedback — LED lights blue when idle, flashes green while dialing, and stays solid green when the call connects.
- Reliable Door/Gate Control — Built-in 2-amp relay contacts activate electric strikes, mag locks, or optional Viking SL-2 strobe lights.
- Enhanced Weather Protection (EWP) — Meets IP66 standards with sealed connections, gaskets, and potted boards—built for rain, snow, and 100% humidity.
- Hands-Free SIP VoIP — Works with any standard SIP phone system; supports Outbound Proxy, Authentication, Peer-to-Peer, and VLAN tagging. No push-to-talk needed.
- Automatic Noise Canceling (ANC) — Delivers clear audio even in noisy environments like parking ramps or near traffic.
- Flexible Calling — Programs up to 5 numbers and automatically cycles through backups on busy or no-answer.
- PoE Powered — Class 1, uses less than 4 watts—simple single-cable installation.
- Secure & Durable — Marine-grade 316 stainless steel faceplate with laser-etched graphics and T-10 Torx security screws.
- Easy Management — Remote programming, network-downloadable firmware, diagnostics for mic/speaker/relay testing, and included polling software.
- Wide Temperature Range — Operates from –40°F to 140°F for true all-weather performance.
Technical Specifications
- Power: PoE IEEE 802.3af Class 1 (<4 Watts)
- Network: 10/100 Base-T Ethernet with auto cross-over, SIP 2.0 (RFC3261)
- Audio Codecs: G.711u, G.711a, G.722
- Sound Pressure: Up to 90 dB SPL @ 1 meter
- Relay: 2 Amp contacts
- Operating Temperature: –40°F to 140°F (–40°C to 60°C)
- Humidity: Up to 100% (EWP version)
- Mounting: Flush mounts in standard double-gang electrical box (not included)
- Connections: (1) RJ45 Ethernet, (3) gel-filled butt connectors
- Dimensions: Fits standard double-gang box (faceplate approx. 5” x 5”)
- Material: Marine-grade 316 stainless steel with laser-etched graphics
- Compliance: FCC Part 15, Canada ICES-3 Class A, CE, IP66 (EWP)
