Description

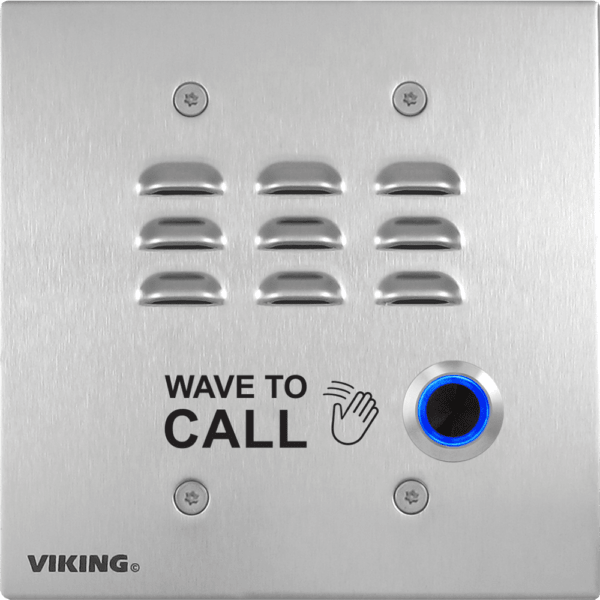

Tired of visitors touching germ-covered buttons just to get in? The Viking E-32TF-IP changes that with a simple wave of the hand. This rugged stainless steel VoIP entry phone uses a touch-free motion sensor to start a call instantly, making it ideal for high-traffic spots like building entrances, parking gates, medical centers, and public lobbies.
It works seamlessly with any SIP-based VoIP phone system, runs on Power over Ethernet (PoE), and includes a built-in 2-amp relay to unlock doors or gates. No push-to-talk hassle – just clear, automatic noise-canceling audio that cuts through noisy environments. Built tough with marine-grade 316 stainless steel and laser-etched graphics, it handles extreme temperatures from -40°F to 140°F.
The Telecom Spot Expert Review
What we love most: the adjustable motion sensor (1–4 inches) works reliably without false triggers, and the LED feedback (blue idle, green dialing/connected) gives clear visual cues even in low light. The automatic noise canceling (ANC) keeps conversations crisp near busy roads or machinery, and the ability to program up to 5 backup numbers means calls almost always get through.
Setup is straightforward for anyone comfortable with basic SIP provisioning. The included polling and programming software plus remote firmware updates save time on maintenance. For outdoor or damp areas, we usually recommend stepping up to the E-32TF-IP-EWP version with enhanced weather protection.
Our Expert Take: If you need a durable, low-maintenance entry solution that prioritizes hygiene and reliability, the E-32TF-IP is one of the best choices in Viking’s lineup. It’s not the cheapest option, but the long-term durability and touch-free feature deliver real value for busy or public-facing locations.
Key Features
- Touch-Free Calling — Wave your hand over the adjustable motion sensor (1–4 inches range) to activate a call – no buttons to touch or germs to spread.
- Visual Call Feedback — Ring LED lights blue when idle, flashes green while dialing, and stays solid green when connected.
- Built-in Door/Gate Control — 2-amp relay contacts activate electric strikes, mag locks, or the optional Viking SL-2 strobe light.
- Crystal-Clear Audio — Automatic Noise Canceling (ANC) + hands-free operation with no push-to-talk required. Supports G.711u, G.711a, and wideband G.722 codecs.
- Reliable SIP Integration — Works with most SIP VoIP systems; supports Outbound Proxy, Authentication ID, Peer-to-Peer, and VLAN tagging.
- Power over Ethernet — PoE Class 1 (<4 watts) – simple single-cable installation.
- Tough Construction — Marine-grade 316 stainless steel with laser-etched graphics and T-10 Torx security screws.
- Smart Call Handling — Dials up to 5 programmable numbers and cycles through backups on busy or no-answer.
- Easy Management — Remotely programmable from any touch-tone phone, PC, or via included automatic polling software. Network-downloadable firmware.
- Extreme Temperature Range — Operates from -40°F to 140°F (-40°C to 60°C).
Technical Specifications
- Power: PoE Class 1 (<4 watts)
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Humidity: 5% to 95% non-condensing
- Audio Codecs: G.711u, G.711a, G.722
- Network: IEEE 802.3af PoE, SIP 2.0 (RFC3261), 100BASE-TX with auto crossover
- Maximum Sound Pressure: 90 dB SPL @ 1 meter
- Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
- Mounting: Flush in standard double gang electrical box (not included)
- Regulatory: FCC Part 15, Canada ICES-3 Class A, CE
- Dimensions: Designed to fit standard double gang box (exact faceplate approx. 5" x 5" area based on series)
