Description

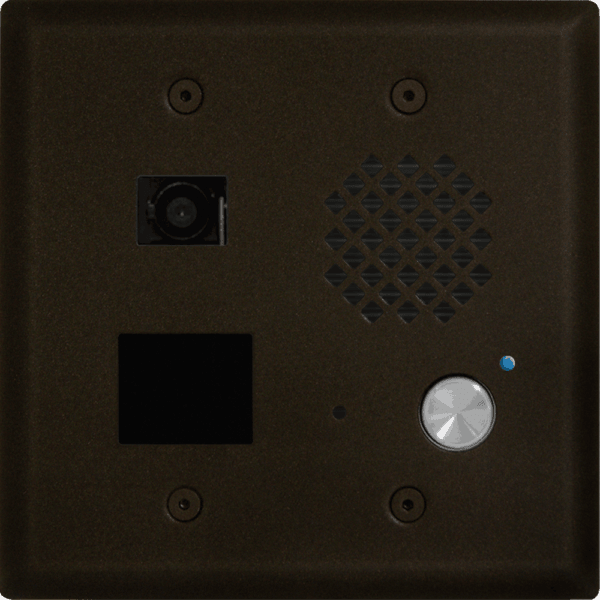

Need a tough, reliable way to see, talk to, and let in visitors right from your phone? The Viking E-75-BN-EWP is a compact double-gang entry phone that combines crystal-clear hands-free audio, a built-in high-resolution analog color video camera, and a 125 kHz proximity card reader—all in one vandal-resistant bronze unit built for the outdoors.
Designed with Viking’s Enhanced Weather Protection (EWP), this entry phone stands up to rain, snow, and temperature swings while delivering professional-grade security and convenience. Whether you run a small business, manage an apartment building, or just want better control at your home entrance, the E-75-BN-EWP makes screening visitors simple and secure. It works with standard phone lines or analog station ports and integrates easily with popular door controllers.
Our expert take: This model shines in outdoor or semi-exposed locations thanks to the EWP gaskets and sealed electronics. Setup is straightforward for techs familiar with analog lines, but we always recommend testing the Wiegand output with your access controller during install. For high-traffic doors, pair it with a Viking ES-1 controller for the smoothest experience. Overall, it’s a solid, no-frills solution that feels built to last. We rate it 4.8/5 for reliability in real-world commercial and multi-family use.
Key Features
- Built-in high-resolution analog color video camera with pinhole lens for clear visitor viewing
- 125 kHz proximity card reader with LED and beep confirmation (outputs standard 26-bit Wiegand data)
- Hands-free two-way speakerphone with volume controls for microphone and speaker
- Selectable auto-answer feature for remote monitoring
- Intelligent call progress detection – automatically hangs up when the call ends
- Vandal-resistant and weather-protected design with EWP foam gaskets and sealed connections
- Compact double-gang size for clean flush mounting
- Bronze finish with optional replacement faceplates available
- Compatible with Viking ES-1 door controller or any 26-bit Wiegand system
Technical Specifications
- Model: E-75-BN-EWP
- Proximity Reader: 125 kHz, 26-bit Wiegand output
- Camera: High-resolution analog color with 2.1 mm conical pinhole lens (approx. 80° H x 60° V field of view)
- Audio: Hands-free speakerphone with adjustable mic and speaker volume
- Mounting: Flush mount in standard double-gang electrical box (surface mount with VE-5x5 series boxes)
- Power: Telephone line powered (minimum 18V DC talk battery, 20mA loop current)
- Operating Temperature: -30° to 150° F (with EWP)
- Connections: Gel-filled butt connectors included for weather resistance
- Compatibility: Viking ES-1, C-200/C-250/C-500/C-2000B controllers, K-1900-5/K-1900-30 dialers, or analog station ports (ring-down)
- Dimensions: Compact double-gang size
- Finish: Oil-rubbed bronze
