Description

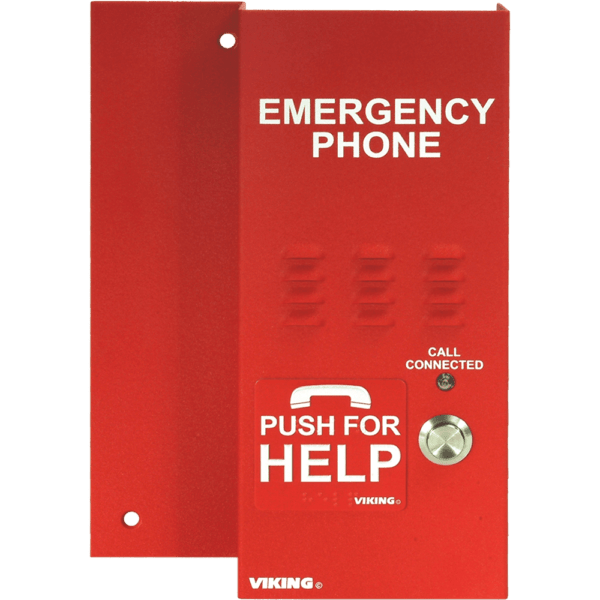

When someone is stuck in an elevator or needs help in an emergency, every second counts. The Viking K-1600-EHFA delivers fast, clear, hands-free communication over any standard analog phone line or PBX station port.
This red powder-coated aluminum phone mounts neatly into a standard elevator phone box and meets strict ADA requirements. It automatically lights a “Call Connected” LED, speaks a location message, and sends a unique ID code so responders know exactly where the call is coming from.
No batteries or external power required — it runs entirely off the phone line. Built tough for real-world use with automatic noise canceling that cuts through background noise in busy elevators, parking garages, or public areas.
Expert Tip from Our Team: Pair it with Viking’s LV-1K Line Verification Panel to fully meet the latest ASME A17.1 elevator code. Also program it to auto-answer incoming calls so security or maintenance can talk back without the caller pressing anything.
Key Features
- ADA Compliant — Automatic “Call Connected” LED, location voice announcement or DTMF ID code, and Grade 2 Braille label
- Automatic Noise Canceling (ANC) — Clear audio even in noisy environments
- Hands-Free Operation — No handset to pick up or hold
- Built-in Dialer — Dials up to 5 programmable emergency numbers + 2 central station numbers with automatic rollover
- Digital Voice Announcer — 16 seconds of non-volatile memory for custom location messages
- Advanced Call Progress Detection — Hangs up automatically on busy, silence, dial tone, CPC, or timeout
- Phone-Line Powered — No batteries or external power needed (24VDC / 20mA minimum)
- Remotely Programmable — Change numbers or messages from any touch-tone phone
- Auto-Answer Capable — Allows two-way communication for monitoring
- Rugged Construction — 14-gauge red powder painted aluminum, operates -15°F to 130°F
Technical Specifications
- Power: Telephone line powered (24VDC / 20mA minimum)
- Dimensions: 9.875” H x 6.86” W x 2.10” D (251 mm x 174 mm x 53 mm)
- Shipping Weight: 2 lbs (0.91 kg)
- Material: 0.062” (14 gauge) red powder painted aluminum
- Operating Temperature: -15°F to 130°F (-26°C to 54°C)
- Humidity: 5% to 95% non-condensing
- Mounting: Recess mount into standard elevator phone box (10.0” x 7.0” x 3.0”)
- Connections: Gel-filled butt connectors (included)
- Certifications: FCC Part 68, FCC Part 15
- Memory: Non-volatile (no batteries required)
