Description
- Viking Advanced Loop Detector loop detect board for ring and line inchin useinch contact closures
- Provide a contact closure during ringing and/or off-hook
- Monitors an analog phone line for ringing or an off hook condition
- A built-in relay can be activated when either of these conditions are detected
- This is ideal for monitoring line status or for providing a visual indication of such
- Disable input is ideal for two-button emergency phones such as Viking's E-1600-20A allowing inchInfoinch button calls to be placed without activating the relay (turning on the emergency strobe light camera etc.)
- 3 DIP switches are provided for turning ring detection on or off off-hook loop detection on or off and for selecting a ring cadence mode which allows the relay to follow ringing or to remain activated during the off time of standard ring cadence
- Complete with a 12 VDC power adapter
- Can also provide switched 12VDC .35 Amp output to power external lights etc. during ringing and/or off-hook conditions
- Applications: control a strobe or beacon light for ring indication provide relay closures on off-hook trigger a security camera trigger a tape recorder phone inchin useinch indicator
- Detects ring voltage and off hook loop current
- On/off switches for ring detection and off hook/loop detection

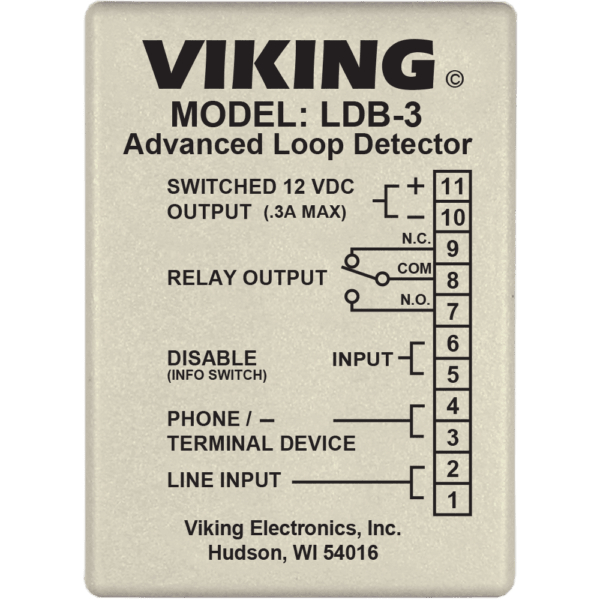

- Screw terminal connections
- Selectable ring cadence mode (relay can remain on between rings)
- Wall mountable with foam tape (included) or screws (not included)
- Switched 12V DC output (follows relay activation for powering strobe lights cameras etc.)
- One set of (NO) normally open and (NC) normally closed relay contacts provided
- Disable input ideal for use with two-button emergency phones (E-1600-20A) will not activate relay on inchInfoinch calls
- Made in the USA
- 1 Year manufacturer's warranty
- Power: 120V AC to 12V DC adapter provided
- VKLDB3
