Description

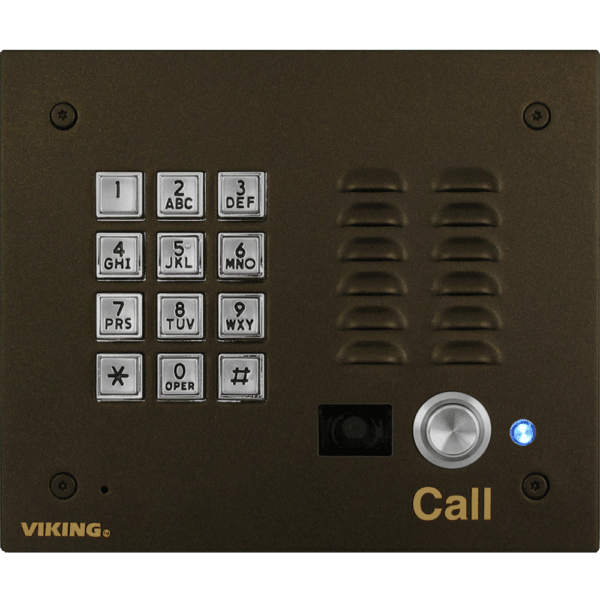

Tired of squinting at a grainy intercom screen or dealing with a flimsy entry phone that won't survive a tough winter? The Viking K-1705-3-BN delivers sharp color video and clear two-way audio in one vandal-resistant unit finished in an attractive oil-rubbed bronze that suits modern and traditional exteriors alike.
Powered entirely by your telephone line, the K-1705-3-BN needs no separate power supply for the phone itself. Visitors use the full 12-button metal keypad to dial any number, and smart call-progress detection automatically hangs up when the call ends—no tied-up lines, no forgotten connections. Audio and video run together over a single CAT5E cable, keeping installation clean and straightforward whether you're wiring a gated home, apartment building, or office lobby.
The 14-gauge 316 stainless steel faceplate with scratch-resistant bronze powder coating is built to take abuse, while the wide -30°F to 150°F operating range means it performs reliably from a Minnesota January to a Phoenix August. A flush-mount zinc-plated rough-in box is included out of the box, and surface mount options are available if your installation calls for it.
Our Expert Take: The K-1705-3-BN is a strong pick for property managers and homeowners who want a video entry phone that actually looks good on the wall. The bronze finish is a practical aesthetic upgrade over standard stainless for upscale residential or boutique commercial settings. One tip worth noting: since audio and video share a single CAT5E cable, confirm your video display or receiver supports composite NTSC input before ordering. If you need a VoIP or SIP-based solution rather than a traditional phone line, look at Viking's IP-based entry phone lineup instead.
Key Features
- Built-in high-resolution color video camera – 1/4″ CMOS, 420-line resolution, 80° horizontal field of view, composite NTSC output
- Camera includes tilt/swivel adjustment and operates from -30°F to 150°F
- Vandal-resistant 14-gauge 316 stainless steel faceplate with scratch-resistant bronze powder coating
- Heavy-duty metal keypad and sealed stainless steel "Call" button
- Telephone line powered – no separate power supply required (20VDC / 20mA minimum)
- Audio and video transmitted over a single CAT5E cable for simplified installation
- Intelligent call-progress detection with automatic hang-up on busy, CPC, reorder, or silence
- Selectable auto-answer mode for monitoring with push-button disconnect
- Adjustable microphone and speaker volume
- Blue "in use" LED indicator
- Flush mount with included zinc-plated rough-in box featuring two ¾″ conduit knockouts
- FCC Part 68 and Part 15 compliant
Technical Specifications
- Power: Telephone line powered (20VDC / 20mA minimum)
- Camera: 1/4″ color CMOS, 420-line resolution, 80° horizontal FOV, composite NTSC output
- Operating Temperature: -30°F to 150°F (-34°C to 65°C)
- Overall Dimensions: 5.5″ x 6.5″ x 2.6″ (140 mm x 165 mm x 66 mm)
- Rough-In Box Dimensions: 4.5″ x 5.5″ x 2.5″ (114 mm x 140 mm x 64 mm)
- Material: 14-gauge 316 stainless steel with bronze powder coating
- Connections: Gel-filled butt connectors
- Mounting: Flush mount (included rough-in box) or optional surface mount
- Certifications: FCC Part 68, FCC Part 15
- Shipping Weight: 3.5 lbs (1.6 kg)
