Description

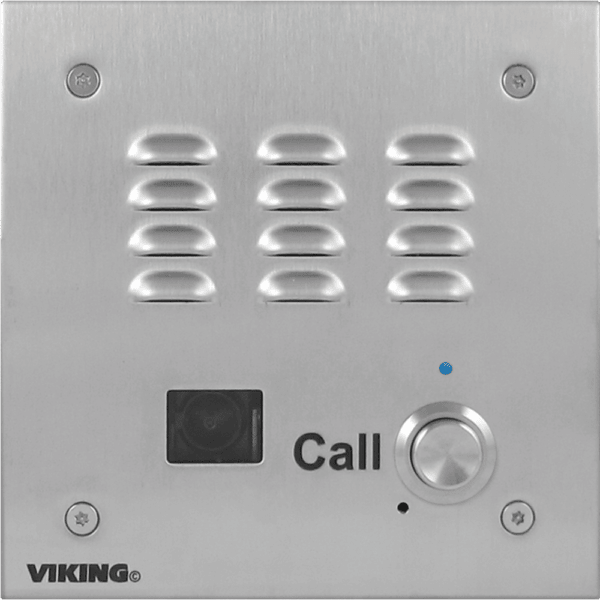

Tired of wondering who’s at the gate or door? The Viking E-35-IP gives you clear two-way voice and live color video right from your existing SIP VoIP phone system.
This rugged stainless steel entry phone mounts flush or on the surface, works in extreme temperatures from -40°F to 140°F, and lets visitors call up to five programmed numbers with the push of a button. Built-in automatic noise canceling keeps conversations clear even next to busy roads or parking lots. Plus, the onboard 2-amp relay unlocks doors or gates instantly when you press a key on your phone.
Whether you run a medical center, apartment building, stadium, or corporate lobby, the E-35-IP delivers reliable, professional-grade access control without complicated new wiring. PoE powered means simple installation using your existing network cable.
Our Expert Take: If you need a dependable video door phone that integrates cleanly with 3CX, Asterisk, or most hosted SIP systems and you want the peace of mind of a true -40°F to 140°F operating range, the E-35-IP is an excellent choice. For truly exposed outdoor locations, consider stepping up to the E-35-IP-EWP version with enhanced weather protection.
Key Features
- Built-in high-resolution analog NTSC color video camera (420 lines, 80° horizontal view) with tilt/swivel adjustment
- SIP compliant – works with most VoIP phone systems
- PoE powered (IEEE 802.3af Class 1, less than 4 watts)
- Automatic Noise Canceling (ANC) for clear calls in loud areas
- VoIP audio detection – no push-to-talk button needed
- 2-amp SPDT relay contacts for door strikes, gates, or strobe lights
- Dials up to 5 programmable numbers and cycles through backups on busy or no-answer
- Blue “Call Connected” LED for easy visual feedback
- Handsfree speakerphone with 90 dB output
- Rugged 14-gauge 316 stainless steel faceplate with brushed finish
- Flush mount rough-in box included or surface mount with optional VE-5X5 box
- Network downloadable firmware and full diagnostics
- Extended temperature range: -40°F to 140°F
Technical Specifications
- Power: PoE Class 1 (<4 Watts) + separate 12VDC adapter for camera (included)
- Audio Codecs: G.711u, G.711a, G.722
- Network: 10/100 Base-T, SIP 2.0, auto crossover
- Relay: SPDT 2A @ 30VDC / 1A @ 125VAC
- Camera: 1/4″ color CMOS, 420 lines, 640x480 @ 30fps, 0.025 LUX sensitivity, 2.1mm pinhole lens
- Field of View: 80° Horizontal, 60° Vertical, 100° Diagonal
- Dimensions: 5.0″ x 5.0″ x 2.25″
- Material: 14-gauge 316 stainless steel
- Shipping Weight: 2.1 lbs
- Connections: RJ45 + 6 gel-filled butt connectors
