Description

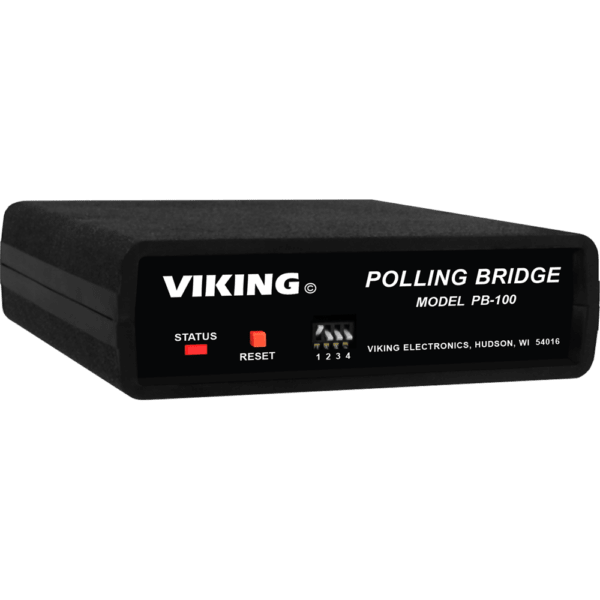

Managing a network of emergency phones shouldn't mean manually testing every unit on foot — the Viking PB-100 Paging Bridge automates the entire polling and diagnostics process so you always know your 1600A Series emergency phones are ready when someone needs them.
Connect the PB-100 to your PC via RS-232 or USB, set your testing schedule, and let it do the work. It calls each phone automatically, verifies the ID code, tests the microphone and speaker, and logs every result with a date and time stamp. Whether you're overseeing a handful of phones in a parking garage or dozens spread across a university campus, you get a clear, organized record of each phone's status without leaving your desk.
The built-in modem works with standard analog phone lines or high-quality VoIP lines, and everything you need to get started — the RS-232 to USB converter cable, power adapter, and software CD — is included right out of the box. The software also includes programming tools for other Viking products, making the PB-100 a genuinely useful addition to any facility management setup.
Our Expert Take: The PB-100 is the right tool for any facility manager responsible for ADA-compliant emergency phone compliance, where documented proof of regular testing isn't just good practice — it's often a requirement. The automatic logging feature is particularly valuable during audits or safety inspections. Keep in mind that the PB-100 is specifically designed for the Viking 1600A Series, so if your site uses a mix of emergency phone models, verify compatibility before purchasing.
Key Features
- Automatically polls Viking 1600A Series Emergency Phones on a user-defined schedule
- Verifies each phone's programmed ID code during every test cycle
- Tests microphone and speaker functionality on each polled unit
- Logs date, time, and test results for easy record-keeping and compliance documentation
- Connects to PC via 9-pin RS-232 or USB — RS-232 to USB converter cable included
- Built-in modem compatible with analog C.O. lines or high-quality VoIP lines
- Includes CD with polling software plus programming tools for other Viking products
- Compact 5″ x 5″ x 1.5″ footprint fits easily on a desk or shelf
Technical Specifications
- Power: 120V AC to 12V DC 500mA UL listed adapter (included)
- PC Interface: 9-pin RS-232 or USB (cable included)
- Phone Line: Analog C.O. line or high-quality VoIP line (non-compressing codec recommended)
- Software Requirements: Windows XP or newer, IBM-compatible PC with available serial or USB port
- Dimensions: 5″ x 5″ x 1.5″ (127mm x 127mm x 25mm)
- Weight: 3 lbs (1.36 kg)
- Operating Temperature: 32°F to 90°F (0°C to 32°C)
- Humidity: 5% to 95% non-condensing
