Description

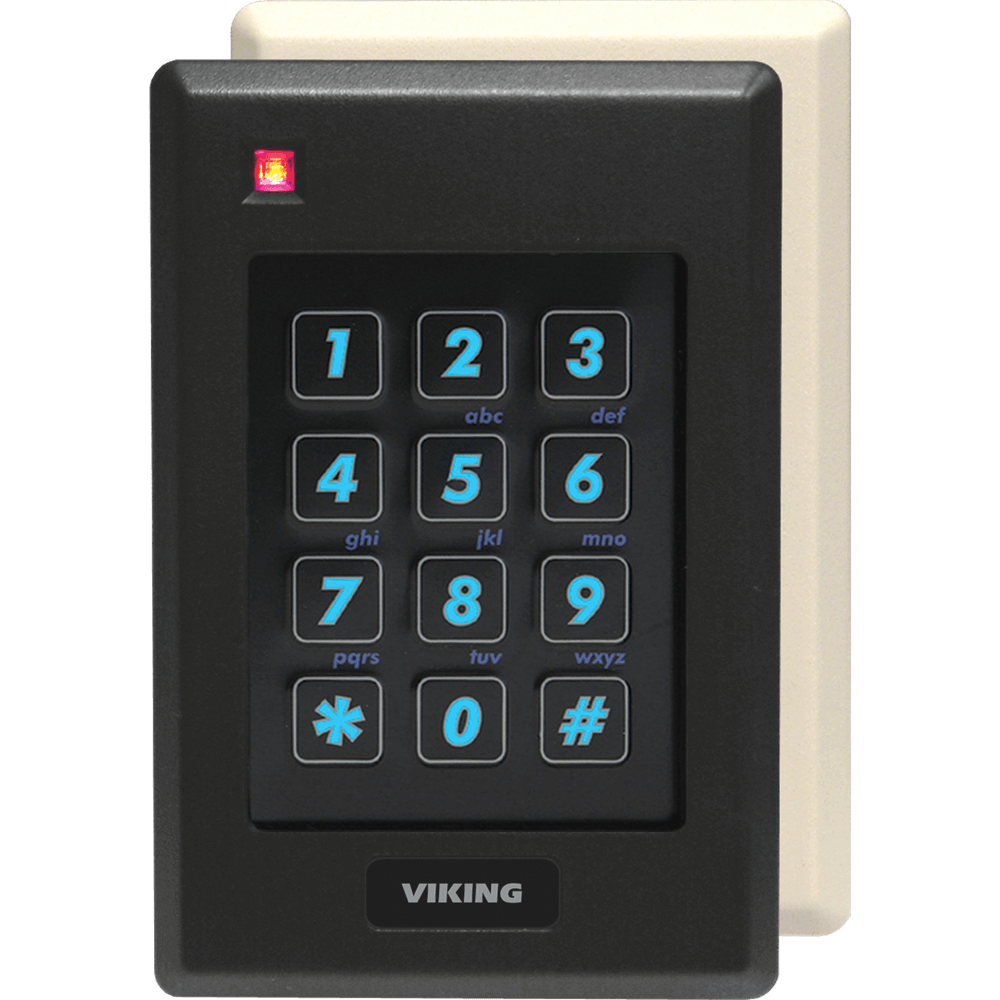

Require both a card swipe and a PIN for high-security entry? The Viking PRX-2 combines a 125KHz proximity card reader and a full keypad in a single standard single gang wall box — transmitting both in 26-bit Wiegand format for seamless integration with any Viking Wiegand-equipped entry controller.
The proximity reader and keypad are independently capable of sending Wiegand data, so the system can require card-only, PIN-only, or card plus PIN dual-authentication depending on your security policy. Designed for clean wall-mount installation in the same footprint as a standard electrical box.
Our Expert Take: The PRX-2 is the right reader when card-only access isn't enough and dual-factor authentication is needed. Compatible with Viking ES-1, ES-3, and AES-2000 controllers. For card-only without a keypad, the PRX-1 is simpler and less expensive.
Key Features
- Combined 125KHz proximity reader and keypad in one unit
- Both reader and keypad transmit 26-bit Wiegand data independently
- Supports card-only, PIN-only, or card + PIN dual-factor authentication
- Mounts in standard single gang wall box
- Compatible with Viking ES-1, ES-3, and AES-2000 entry controllers
Technical Specifications
- Frequency: 125KHz
- Output: 26-bit Wiegand
- Mounting: Standard single gang wall box
