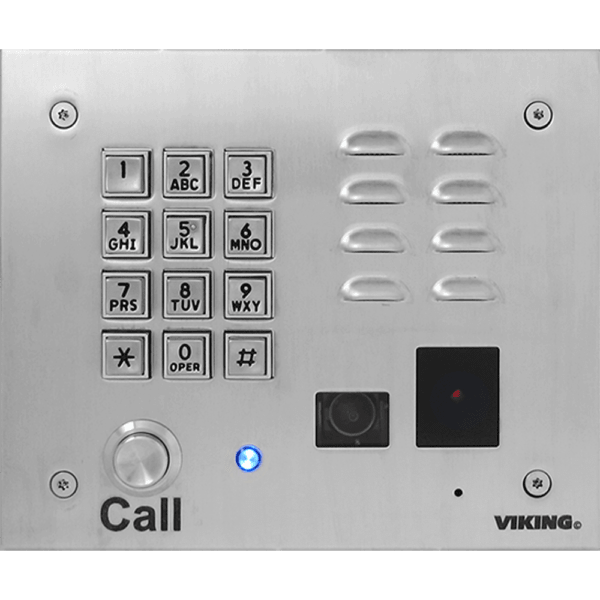

When a high-security outdoor access point on an analog POTS line needs video, proximity card, keypad entry, and weather protection all in one rugged stainless steel unit, the Viking K-1775-3-EWP delivers — Enhanced Weather Protection on the proven K-1775-3 platform.
EWP construction adds sealed gaskets, gel-filled connectors, Mylar speaker, self-draining mic mount, and a push button switch internally sealed per IP67. The built-in color camera transmits audio and video over CAT5E. Wiegand proximity reader and heavy-duty metal keypad support multi-method access. The 14-gauge stainless steel faceplate and T-10 Torx security screws handle vandalism and weather together. Telephone line powered, relay contacts for door strike or gate.
Our Expert Take: The K-1775-3-EWP is Viking's most complete outdoor-rated analog entry phone — video, proximity, keypad, intercom, and EWP in stainless steel. For SIP VoIP systems, the K-1775-IP-EWP is the upgrade path.
Key Features
- Enhanced Weather Protection (EWP); switch internally sealed per IP67
- Built-in color video camera with tilt/swivel; CAT5E audio/video
- Built-in Wiegand proximity card reader
- 14-gauge stainless steel faceplate; heavy-duty metal keypad
- T-10 Torx security screws; Mylar speaker; self-draining mic mount
- Relay contacts for door strike or gate control
- Telephone line powered; handsfree; call progress detection
Technical Specifications
- Power: Telephone line powered
- Weather Protection: EWP; switch IP67
- Video: Analog color camera over CAT5E
- Card Reader: Wiegand proximity
- Faceplate: 14-gauge stainless steel
