Description

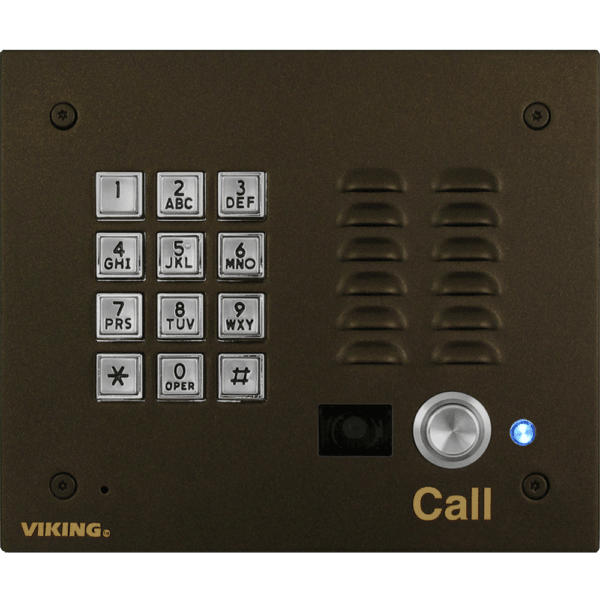

When your video keypad entry phone has to handle weather exposure in an upscale setting, the Viking K-1705-BN-IPEWP delivers — oil rubbed bronze construction with built-in color video, SIP VoIP connectivity, and Enhanced Weather Protection designed to meet IP66 ingress protection standards.
PoE powers the unit from a single network cable. The built-in color camera transmits audio and video over CAT5E with tilt/swivel adjustment and an impact-resistant lens. EWP construction adds sealed gaskets, gel-filled connectors, and a push button switch internally sealed per IP67 to keep moisture out through rain, snow, and high humidity. The heavy-duty metal keypad and T-10 Torx security screws maintain vandal resistance. Two SPDT 2-amp relay contacts fire door strikes or gates on command.
Our Expert Take: The K-1705-BN-IPEWP is ideal for gated residential communities, boutique hotel entrances, and luxury office buildings where the entry point is exposed to weather and bronze hardware is required throughout. If proximity card access is also needed, look at the K-1775-BN-IPEWP.
Key Features
- Enhanced Weather Protection (EWP) designed to meet IP66; switch IP67
- SIP compliant — PoE powered
- Built-in analog color video camera with tilt/swivel; impact-resistant lens
- Audio and video over single CAT5E
- Oil rubbed bronze vandal-resistant faceplate
- Heavy-duty metal keypad; T-10 Torx security screws
- Two SPDT 2-amp relay contacts for door/gate control
- VoIP audio detection — no push-to-talk
- Automatic Noise Canceling (ANC); remotely programmable
Technical Specifications
- Power: PoE
- Protocol: SIP 2.0
- Weather Protection: IP66 (EWP); switch IP67
- Video: Analog color camera over CAT5E
- Relay: Two SPDT 2A contacts
- Finish: Oil rubbed bronze
