Description

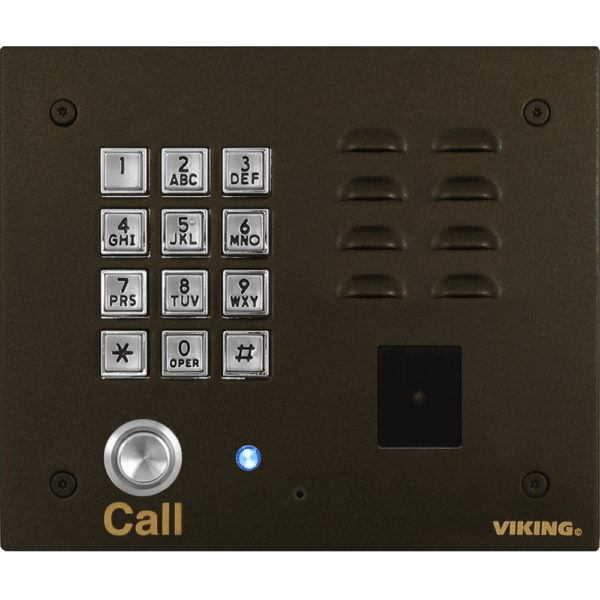

When your multi-method access control entry phone needs to handle both weather exposure and upscale aesthetics, the Viking K-1770-BN-IPEWP delivers — oil rubbed bronze vandal-resistant construction with a built-in Wiegand proximity card reader, SIP VoIP intercom, and Enhanced Weather Protection designed to meet IP66 standards.
PoE powers the unit from a single network cable. EWP construction adds sealed gaskets, gel-filled connectors, and a push button switch internally sealed per IP67 to protect against rain, snow, and high humidity. The heavy-duty metal keypad handles code-based access, while the Wiegand proximity reader handles contactless credentials. Two-amp relay contacts fire door strikes or gates on authorization. VoIP audio detection and Automatic Noise Canceling handle intercom calls cleanly without push-to-talk.
Our Expert Take: Choose the K-1770-BN-IPEWP when a weather-exposed entry point needs both proximity card and keypad access in a bronze finish. The IP66 EWP adds the outdoor durability the standard K-1770-BN-IP lacks.
Key Features
- Enhanced Weather Protection (EWP) designed to meet IP66; switch IP67
- SIP compliant — PoE powered
- Built-in Wiegand proximity card reader
- Heavy-duty metal keypad; oil rubbed bronze vandal-resistant faceplate
- 2-amp relay contacts for door/gate control
- VoIP audio detection — no push-to-talk
- Automatic Noise Canceling (ANC); remotely programmable
Technical Specifications
- Power: PoE
- Protocol: SIP 2.0
- Weather Protection: IP66 (EWP); switch IP67
- Card Reader: Wiegand proximity
- Relay: 2A SPDT
- Finish: Oil rubbed bronze
