Description

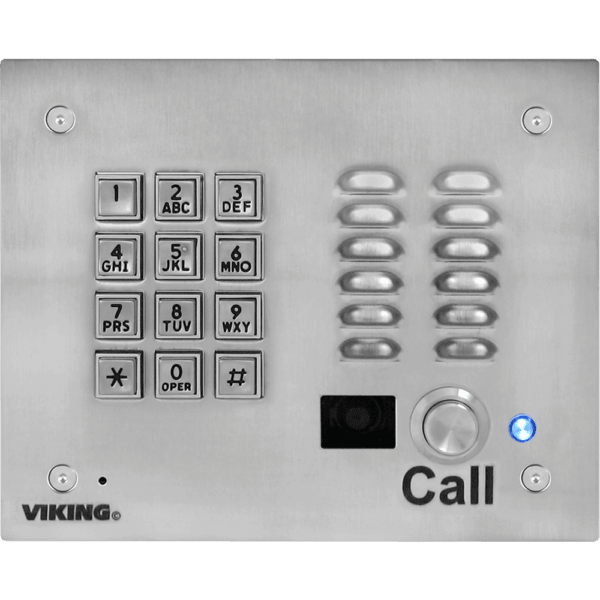

Need a SIP-compatible entry phone with live video so you can see who's at the door before you answer? The Viking K-1705-IP combines a vandal-resistant stainless steel keypad entry phone with a built-in analog color video camera and SIP VoIP connectivity, all powered by PoE.
The heavy-duty 14-gauge stainless steel faceplate, metal keypad, stainless steel call button, and T-10 Torx security screws are built for high-traffic, high-abuse installations. The built-in color camera transmits video over a single CAT5E cable alongside audio, with tilt and swivel adjustment and an impact-resistant lens for a clear, wide-angle view. VoIP audio detection handles calls without push-to-talk, and two SPDT 2-amp relay contacts control door strikes or gates. PoE powers the entire unit from your existing network infrastructure.
Our Expert Take: The K-1705-IP adds video capability to the K-1700-IP keypad platform — a solid choice when the security or management team needs to visually verify visitors before granting keypad access. For weather-exposed locations, the K-1705-IP-EWP adds IP66 protection. If proximity card access is needed alongside video, look at the K-1775-IP.
Key Features
- SIP compliant — PoE powered, no analog line required
- Built-in analog color video camera with tilt/swivel adjustment
- Impact and scratch-resistant camera lens
- Audio and video transmitted over single CAT5E cable
- 14-gauge stainless steel faceplate; heavy-duty metal keypad
- Stainless steel call button; T-10 Torx security screws
- Two SPDT 2-amp relay contacts for door/gate or camera control
- VoIP audio detection — no push-to-talk required
- Automatic Noise Canceling (ANC)
- Remotely programmable; network downloadable firmware
Technical Specifications
- Power: PoE
- Protocol: SIP 2.0
- Video: Analog color camera; audio + video over single CAT5E
- Relay: Two SPDT 2A contacts
- Faceplate: 14-gauge stainless steel
