Description

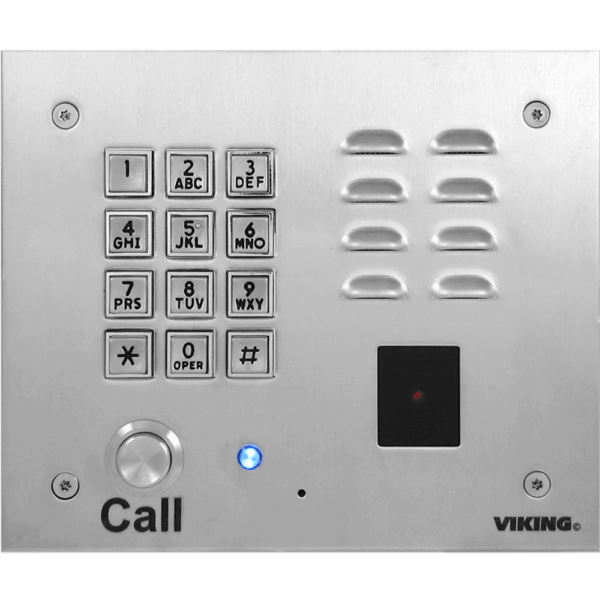

When your SIP entry phone needs proximity card access, keypad entry, and full weather protection at an exposed outdoor location, the Viking K-1770-IP-EWP delivers — combining vandal-resistant stainless steel construction with a Wiegand proximity card reader and Enhanced Weather Protection designed to meet IP66 standards.
PoE powers the unit from your existing network cable. EWP construction adds sealed gaskets, gel-filled connectors, Mylar speaker, self-draining mic mount, and a push button switch internally sealed per IP67. The 14-gauge stainless steel faceplate, heavy-duty metal keypad, stainless steel call button, and T-10 Torx security screws handle vandalism. The onboard 2-amp relay controls door strikes or gates, and VoIP audio detection handles intercom calls without push-to-talk in any weather condition.
Our Expert Take: The K-1770-IP-EWP is the complete outdoor-grade VoIP proximity keypad entry phone — IP66 weather protection plus Wiegand card access plus SIP intercom in one stainless steel unit. It's a strong fit for parking garage entrances, transit stations, and any outdoor access point that sees both heavy traffic and weather exposure.
Key Features
- Enhanced Weather Protection (EWP) designed to meet IP66; switch IP67
- SIP compliant — PoE powered
- Built-in Wiegand proximity card reader
- 14-gauge stainless steel faceplate; heavy-duty metal keypad
- T-10 Torx security screws; Mylar speaker; self-draining mic mount
- 2-amp relay contacts for door/gate control
- VoIP audio detection — no push-to-talk
- Automatic Noise Canceling (ANC); remotely programmable
Technical Specifications
- Power: PoE
- Protocol: SIP 2.0
- Weather Protection: IP66 (EWP); switch IP67
- Card Reader: Wiegand proximity
- Relay: 2A SPDT
- Faceplate: 14-gauge stainless steel
