Description

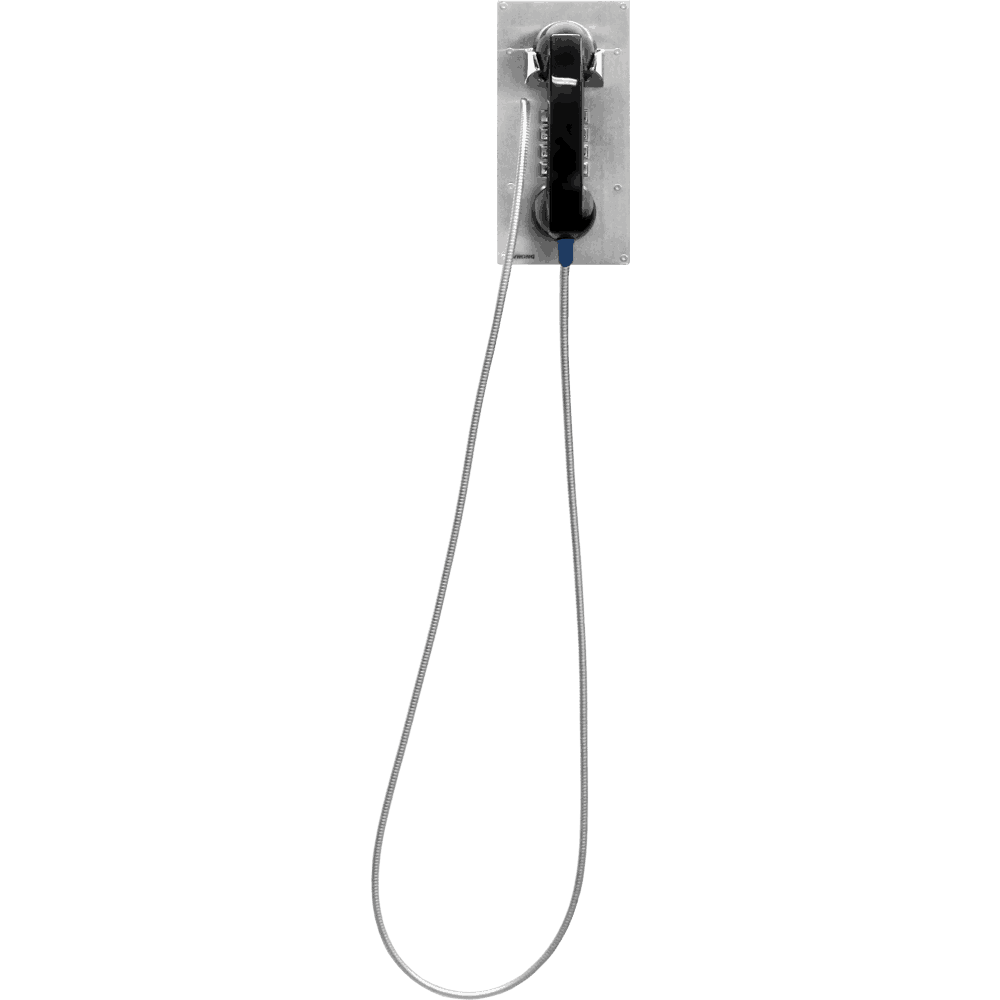

When a SIP VoIP hot-line phone with a keypad needs to survive both vandalism and the elements at an exposed outdoor location, the Viking K-1900-8-IPEWP delivers — combining the full K-1900-8-IP VoIP platform with Enhanced Weather Protection designed to meet IP66 ingress protection standards.
Auto-dial the pre-programmed number on handset lift, or use the heavy-duty metal keypad for direct dialing. PoE powered over a single network cable. EWP construction adds faceplate gaskets, weather-resistant components, and sealed construction to handle rain, snow, and high humidity. The 12-gauge 316 marine-grade stainless steel faceplate, armored handset cable, and T-10 Torx security screws ensure vandal resistance. Two SPDT 2-amp relay contacts control door strikes or gates.
Our Expert Take: The K-1900-8-IPEWP is for outdoor-exposed SIP installations that need both hot-line auto-dial and keypad capability in a weather-sealed stainless steel panel. It's a strong fit for transit stations, parking structures, and campus emergency call points on VoIP networks.
Key Features
- Enhanced Weather Protection (EWP) designed to meet IP66
- SIP compliant — PoE powered
- 12-gauge 316 marine-grade stainless steel faceplate
- Heavy-duty metal keypad and hook switch; armored handset cable
- T-10 Torx security screws; faceplate gaskets
- Auto-dials on handset lift; manual keypad dialing also supported
- Hearing-aid compatible amplified handset
- Two SPDT 2-amp relay contacts for door/gate or camera control
- Programmable via networked PC or remote Static IP
Technical Specifications
- Power: PoE
- Protocol: SIP 2.0
- Weather Protection: IP66 (EWP)
- Faceplate: 12-gauge 316 stainless steel
- Relay: Two SPDT 2A contacts
