Description

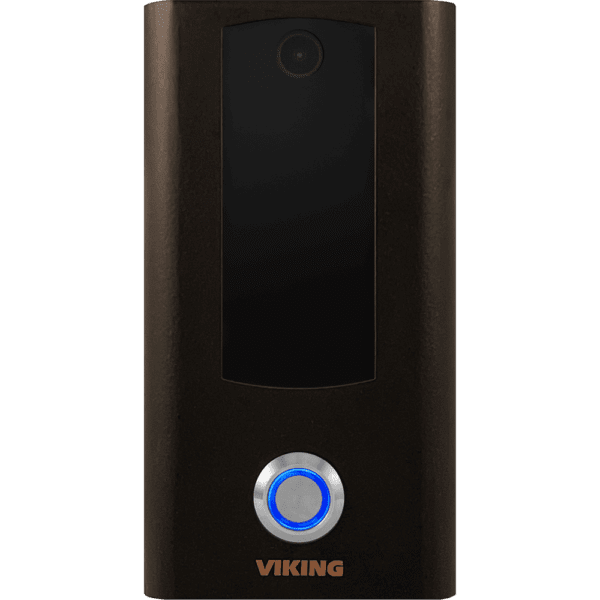

The X-205-BN-EWP delivers professional-grade IP video intercom capabilities with SIP VoIP integration for enterprise access control systems. Its 1080p dual-stream camera features H.264 compression, 126-degree wide-angle lens, and enhanced low-light performance for clear identification in variable conditions. Remote programming via Web UI and support for dial-programmable functions streamline deployment and management. The integrated 2 Amp relay output controls door strikes and gate mechanisms directly. Enhanced Weather Protection (EWP) construction—including IP66-rated sealing, foam gaskets, potted electronics, and sealed connectors—ensures reliable outdoor performance in moisture-heavy environments. PoE Class 1 power delivery simplifies installation while visual call status via blue LED indicators provides immediate feedback. Purpose-built for demanding perimeter and entry-point applications.
Viking X-205-BN-EWP Key Features:
- SIP compliant
- ONVIF Profile S compliant
- 126° wide viewing angle
- H.264 and MJPEG video encoding
- Up to 1080p SIP video calling
- Separate NVR stream with audio up to 1080p
- Selectable video resolutions: 352 x 288, 704 x 526, 720p and 1080p
- Remotely programmable via Web UI
- Gigabit Ethernet for up to 1000 Mbps
- 2 Amp relay contacts for door/gate or optional SL-2 strobe light
- Blue backlit 316 stainless steel push button switch
- PoE powered (class 1, < 4 Watts)
- Network downloadable firmware
- Handsfree operation
- Vandal resistant stainless steel prevents corrosion
- Cycles through backup phone numbers on busy or no-answer
- Includes Enhanced Weather Protection (EWP), EWP products are designed to meet
- IP66 Ingress Protection Rating
- Extended temperature range of -40° F to 140° F
- Oil rubbed bronze finish
- Volume adjustments for microphone and speaker
- Surface mounts to a standard single gang electrical box (not included), or mount directly to a wall or flat sided post
- Diagnostics for testing microphone, speaker, and relay
