Yealink MCore Kit C5U - MCore 4 Mini-PC, MTouch Plus, RoomSensor
Options:
- Yealink MCore Kit C5U for Teams (1206709)
- Yealink MCore Kit C5U for Zoom (1206710)
Upgrade your meetings with the Yealink MCoreKit-C5U, a complete room system designed for streamlined collaboration, smart automation, and effortless deployment. This all-in-one kit includes the high-performance MCore 4 Gen-4 Mini-PC, an ultra-responsive MTouch Plus 11.6” touch panel, and an intelligent RoomSensor—perfectly engineered for mid-to-large Teams Rooms.
The MCoreKit-C5U offers one-touch meeting controls, flexible content sharing (wired and wireless-not currently available in the USA), and smart occupancy detection. Powered by an Intel Ultra5 125H processor and packed with AI-ready performance, this system ensures crystal-clear audio/video, intelligent multi-camera tracking, and a superior meeting experience.
Please see the Yealink Mcore Kit C5U MS Datasheet for more information.
Yealink MCore Kit C5U Specifications
| Parameter |
Description |

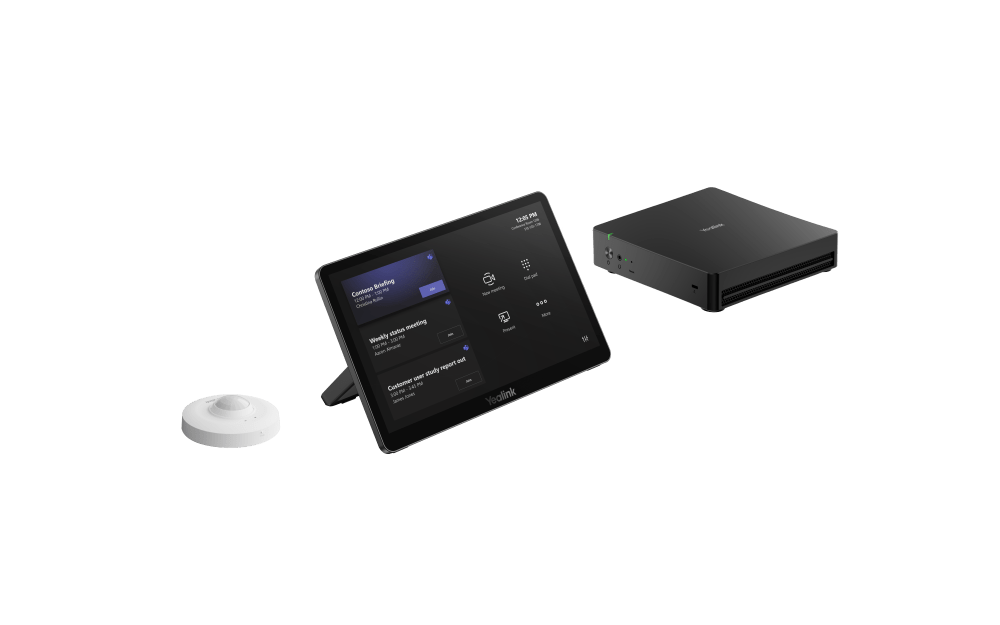

| Package Content |
• MCore 4,Gen-4 Mini-PC
• MTouch Plus, Gen-3 touch panel
• RoomSensor |
| Preload |
• Windows 11 IoT Enterprise X64
• Windows 11 IoT Enterprise License
• Microsoft Teams Rooms App (Teams Version)
• Yealink RoomConnect |

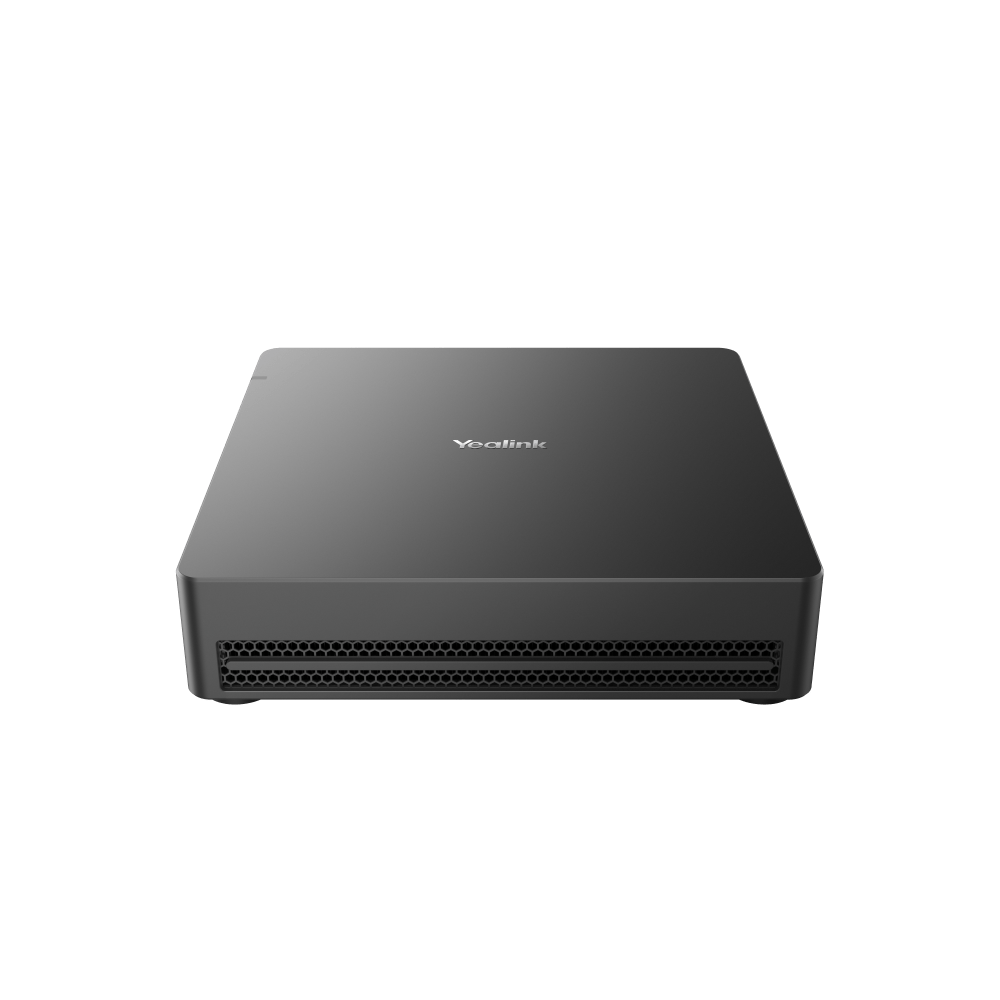

| MCore 4,Gen-4 Mini-PC |
• Processor: Intel Ultra5 125H
• Memory: 16GB(2*8GB) DDR5
• Storage: 256GB SSD
BIOS feature:
• 3x HDMI video output
-CEC
-EDID
• TPM2.0
• Kernel DMA

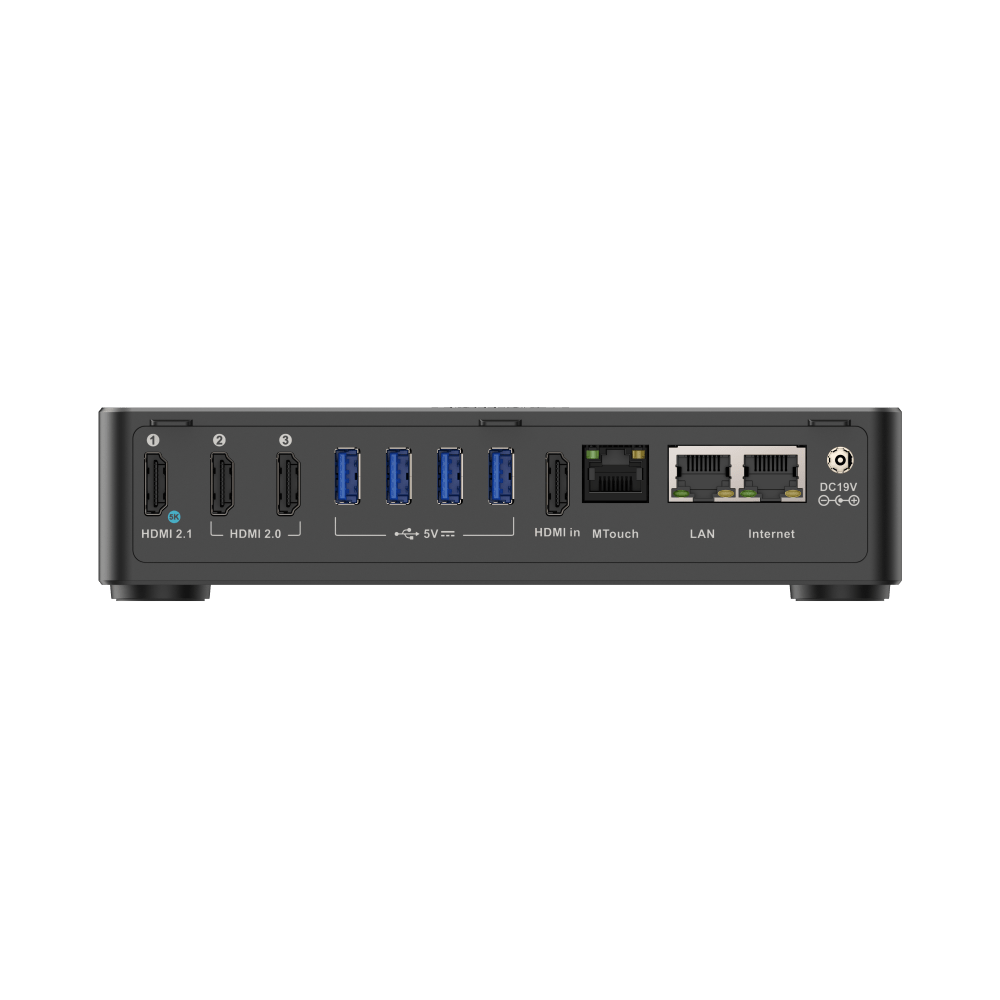

Interfaces:
• 1 x HDMI-Out 2.1 port
• 2 x HDMI-Out 2.0 port
• 1 x HDMI-In port
• 4 x USB3.0 Type-A Port
• 1 x MTouch Port (RJ-45)
• 1 x LAN port for AV network
• 1 x 10/100/1000 Gigabit Ethernet Port
• 1 x Power Supply Port
• 1 x 3.5mm headphone Port
• 1 x reset port
• 1 x Security Slot
• WiFi: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth: BT 5.2 |
| MTouch Plus |
Physical Features:
• 11.6-inch narrow bezel IPS display
• Angle between screen and desktop (30° ~ 70°)
• Adjustable angle of support frame (50° ~ 180°)
Function Features：
•1920 x 1080 video resolution
• Support wired and wireless (with WPP30) content sharing
• Support external PD power supply to power the sharing device
• Support HDMI/USB-C video input
• Support desktop placement, desktop fixed, wall-mounted deployment |
| RoomSensor |
• Detection angle: 120°
• Adjustable detection angle: ±20°
• Operating temperature: 0-40℃
• Operating humidity: 10-95% |
