Yealink MeetingBar A30 with VCR20 Remote – All-in-One Android Video Collaboration Bar
The Yealink MeetingBar A30 is a premium all-in-one video collaboration bar built for medium-sized meeting rooms. It integrates compute, camera, microphone, speaker, Wi-Fi, and Bluetooth in one compact design — no separate PC or codec required. This A30-010 bundle includes the VCR20 Remote Control for intuitive camera and meeting operation.
Dual 8 MP Cameras with AI Framing & Tracking
The A30 features a dual-camera system with a 120° wide-angle lens and a 10× hybrid zoom telephoto camera (3.5× optical + 3× digital). AI-driven Auto Framing, Speaker Tracking, and an electric privacy shutter ensure that every participant is seen clearly and securely.
Crystal-Clear Audio with AI Noise Reduction
An 8-MEMS microphone array with a 6 m pickup range and Yealink Noise Proof technology ensures all voices are heard clearly. Full-duplex audio and forward-facing stereo speakers provide natural, room-filling sound.
Certified for Teams, Zoom, BlueJeans & RingCentral
Run Microsoft Teams Rooms or Zoom Rooms natively — no PC required. Also supports BlueJeans and RingCentral. For interoperability with legacy systems, use BYOD USB mode or General Mode (SIP/H.323).
Key Features
- Optimized for Medium Rooms — Ideal for 6 to 11 participants.
- Dual 8 MP Cameras — 10× hybrid zoom (3.5× optical + 3× digital) & 120° FOV with AI framing & speaker tracking.
- 6 m Mic Pickup — 8-MEMS array with AI noise reduction & echo cancellation.
- VCR20 Remote Included — Control camera zoom/pan and meeting functions easily.
- Native Teams & Zoom Rooms — PC-free setup with dual screen support & calendar integration.
- Powered by Qualcomm Snapdragon 845 — Delivers smooth AI performance & low-latency operation.
Datasheet & Specifications
For complete details, see the Yealink MeetingBar A30 Datasheet (Sept 2025, PDF).
Prefer touch-panel control? View A30-020 bundle with CTP18 Touch Panel →
Package Contents (A30-010)
- MeetingBar A30 endpoint
- VCR20 Remote Control
- 3 m Ethernet cable
- 2 × 1.8 m HDMI cables
- Mounting bracket & accessories
- Power adapter
- Quick Start Guide
Technical Specifications
| Parameter | Description |
|---|---|
| Operating System | Android 10.0 |
| Chipset | Qualcomm Snapdragon 845 |
| Camera System | • Dual 8 MP Cameras (Wide + Telephoto) • Wide: 120° DFOV (112° HFOV / 79° VFOV) • Telephoto: 90° DFOV (81° HFOV / 50° VFOV) • 10× Hybrid Zoom (3.5× Optical + 3× Digital) • Electric Privacy Shutter / 9 Presets • AI Features: Auto Framing, Speaker Tracking, Picture-in-Picture, Smart Gallery (Zoom only) |
| Audio System | • Built-in 8 MEMS Microphone Array (6 m pickup) • Yealink Noise Proof & Beamforming Technology • Full-Duplex / Echo Cancellation / AGC • Speaker Output: 10 W Rated, 16 W Max / 89-98 dB SPL @ 0.5 m / 100-16 kHz Response |
| Video & Content | • Resolution up to 4K @ 30 fps / Dual Display Support • Content Sharing with optional VCH51 • BYOD USB Mode / General Mode (SIP/H.323) |
| Network & Connectivity | • Wi-Fi 6 (2.4 GHz/5 GHz, 2×2 MIMO) • Bluetooth 4.2 • IPv4/IPv6, TLS 1.2/1.3, AES-256 Encryption |
| Ports | • 2 × HDMI-Out (CEC Supported) • 1 × Line-In & 1 × Line-Out (3.5 mm) • 1 × USB 2.0 / 1 × USB 3.0 • 1 × Ethernet (10/100/1000 Mbps) • 1 × Yealink Extension Port (RJ-45) • 1 × Power / 1 × Security Lock / 1 × Reset |
| Management & Control | • VCR20 Remote Control Included • Yealink Device Management Platform & Cloud Service • Microsoft Teams Admin Center / Zoom Admin Portal |
| Installation Options | Wall Mount / TV Clip / Desktop Placement |
| Power & Environmental | • External Power Adapter 48 V DC 0.7 A • Operating Temp 0 – 40 °C / Humidity 10 – 90 % |
| Dimensions & Weight | 700 × 98 × 121 mm / N.W. 4.75 kg / G.W. 5.68 kg |
Frequently Asked Questions
What is included with the Yealink MeetingBar A30-010?
The A30-010 bundle includes the Yealink MeetingBar A30 video bar and the VCR20 Remote Control, mounting bracket, HDMI & Ethernet cables, power adapter, and Quick Start Guide.
What room size is the A30 best for?
Ideal for medium conference rooms (6 – 11 participants). AI framing and 6 m microphone pickup ensure everyone is seen and heard clearly.
Which platforms does the A30 support?
The A30 runs Microsoft Teams Rooms and Zoom Rooms natively and supports BlueJeans and RingCentral. It also supports General Mode (SIP/H.323) for third-party VC systems.
What does the VCR20 remote control do?

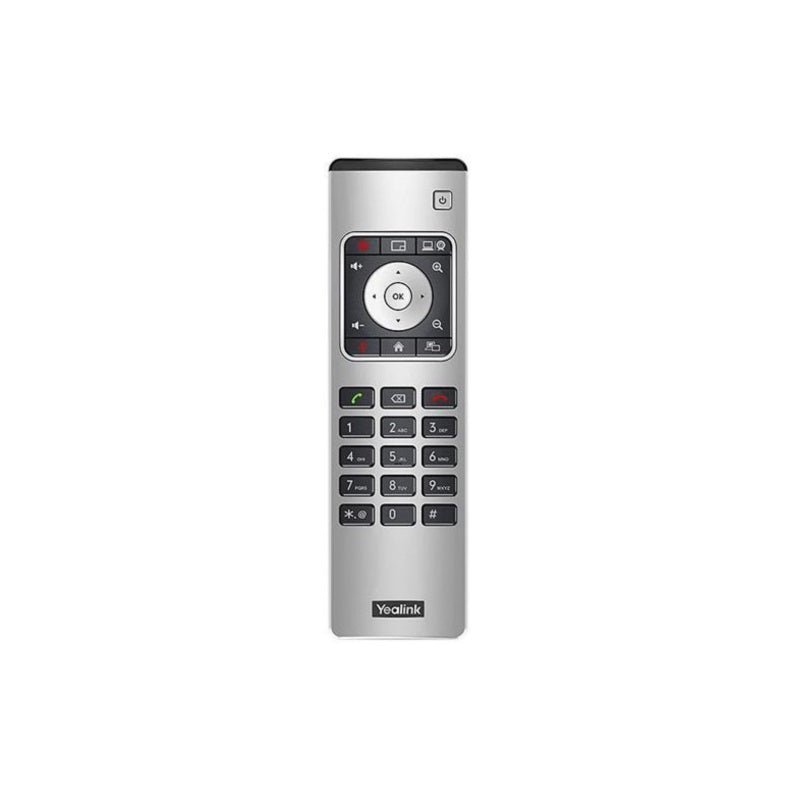

The VCR20 lets you control camera zoom and direction, start/end meetings, mute/unmute, adjust volume, and navigate on-screen menus.
How can I share content with the MeetingBar A30?
The A30 supports content sharing via the optional VCH51 HDMI/USB-C Sharing Kit for wired connections (HDMI, USB-C) and BYOD mode.
Note: The Wireless Presentation Pod (WPP20/WPP30) is not available in the U.S. market.
What’s the difference between A30-010 and A30-020?
Both share identical hardware and performance. The difference is the controller included:
- A30-010 – Includes VCR20 Remote Control.
- A30-020 – Includes CTP18 Touch Panel for touchscreen control.
How is the system powered and managed?
The A30 uses a 48 V DC power adapter and is centrally managed through the Yealink Device Management Platform or Teams/Zoom Admin Centers.
