Description

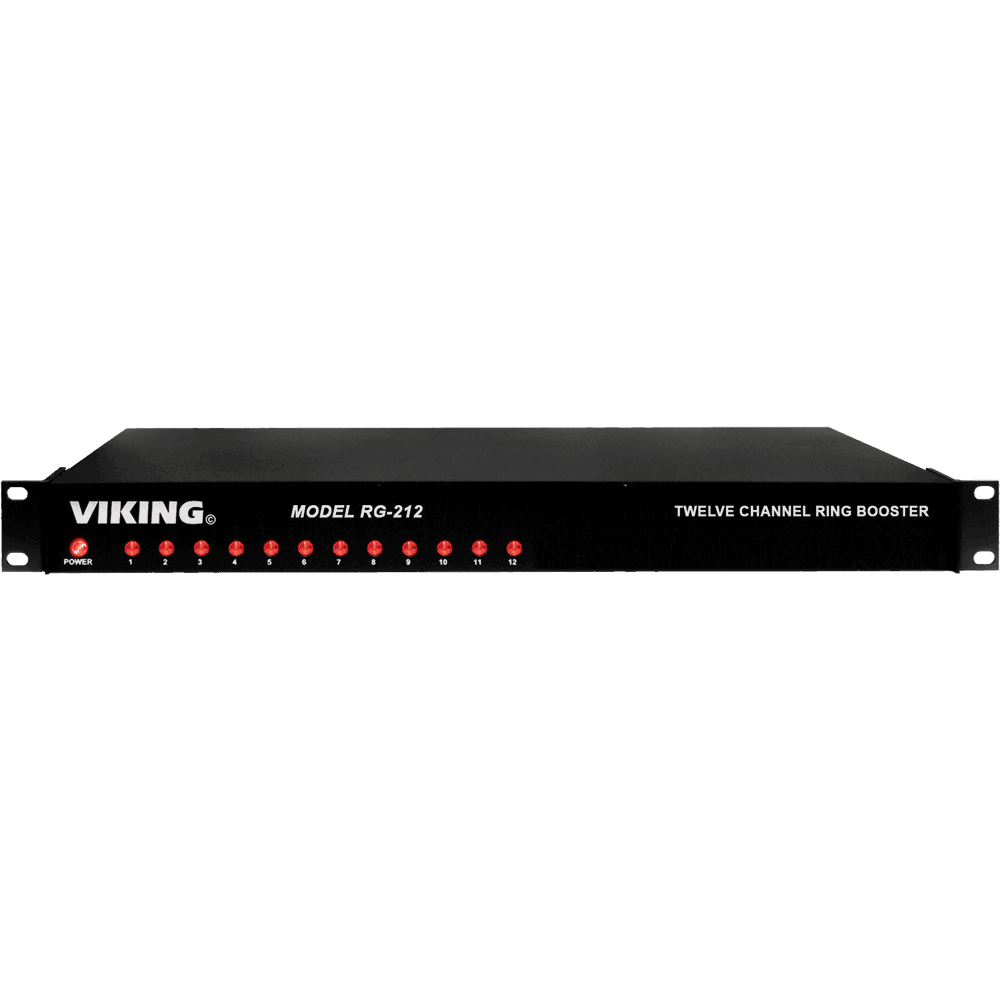

If weak or distorted ringing signals are causing missed calls across your analog extensions, the Viking RG-212 reshapes and amplifies ringing power for up to 12 lines at once — no rewiring required.
The RG-212 takes problematic square wave ring signals from analog PABX extensions, FXS ports, IP phone system analog ports, or other telecom devices and converts them into a clean true sine wave output. Each line gets boosted to 4 REN, enough to ring four 1 REN or eight 0.5 REN telephones per line. Importantly, it duplicates the incoming ring cadence so custom and distinctive ringing features stay intact, and normal line operation — including caller ID, call waiting, hookswitch flash, and CPC signaling — is completely unaffected.
The RG-212 is a practical fit for office phone systems, hospitality environments, and any facility running an IP or analog PABX where ringing reliability across multiple extensions matters. Installation is straightforward using the standard RJ-21X connector, and compatibility with fax machines and modems means you won't need separate solutions for mixed-device environments.
Our Expert Take: The RG-212 is especially valuable when migrating to an IP phone system with FXS analog ports, where square wave ringing is a common complaint that causes phones to ring weakly or inconsistently. The sine wave conversion solves that problem cleanly across all 12 lines simultaneously. One important note: this unit is not compatible with pulse dialing, so confirm your extensions are using tone dialing before deploying.
Key Features
- Supports up to 12 analog PABX extensions, FXS ports, or IP phone system analog ports
- True sine wave ring signal output – reshapes troublesome square wave ringing
- Boosts ring power to 4 REN per line
- Each line capable of ringing four 1 REN or eight 0.5 REN telephones
- Duplicates incoming ring cadence – fully compatible with distinctive and custom ringing services
- Caller ID, call waiting, hookswitch flash, and CPC signaling unaffected
- Fax and modem compatible
- Easy RJ-21X installation
- Not compatible with pulse dialing
Technical Specifications
- Lines Supported: Up to 12 analog extensions or FXS ports
- Ring Output: True sine wave
- Ring Power per Line: 4 REN
- Phones per Line: Up to 4 × 1 REN or 8 × 0.5 REN devices
- Connector: RJ-21X
- Compatibility: Caller ID, call waiting, CPC signaling, distinctive ringing, fax, modem
- Dialing: Tone dialing only (not compatible with pulse dialing)
