Description

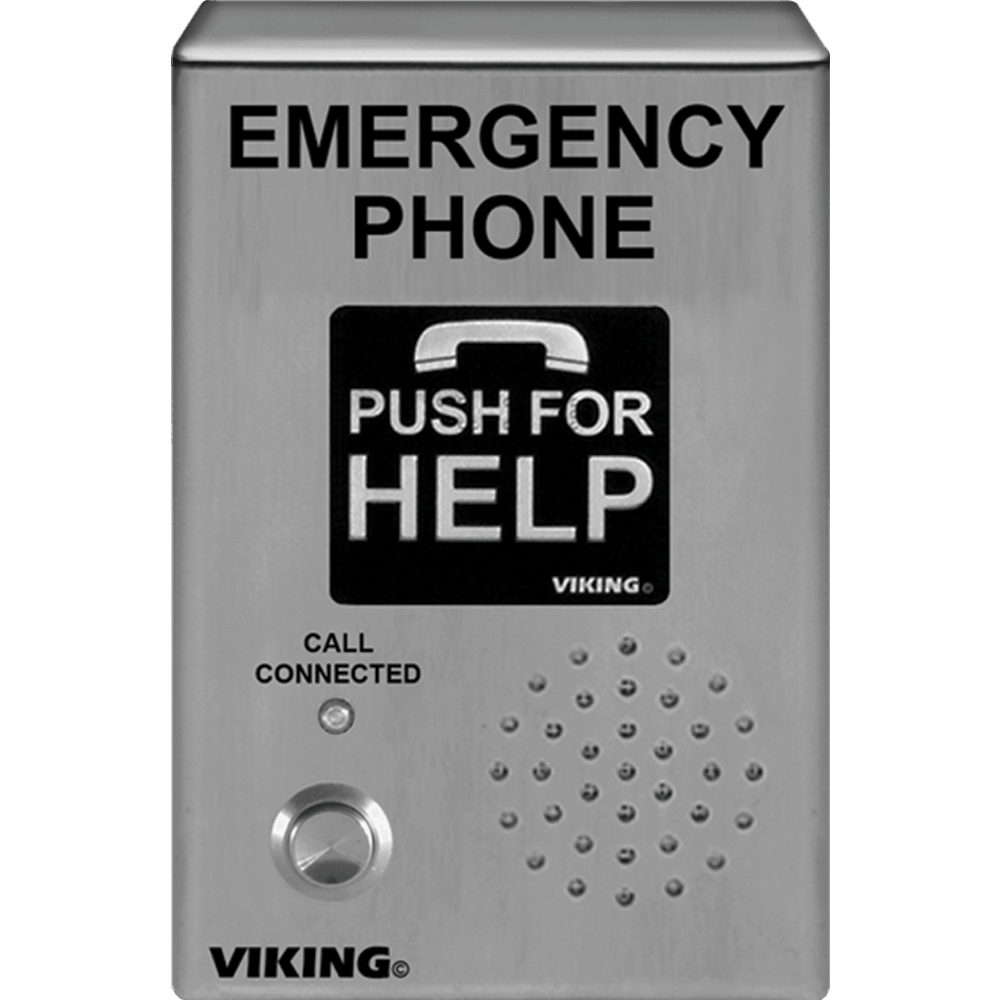

When every second matters, the Viking E-1600-03B gives people in trouble a fast, reliable way to call for help — no handset, no batteries, and no complicated setup required.
Built from 14-gauge marine grade 316 stainless steel with a clean brushed finish, this vandal-resistant emergency phone connects to any standard analog phone line and draws all the power it needs directly from the line itself. When someone presses the button, it automatically dials up to five programmed emergency numbers, lights the "Call Connected" LED so the caller knows the line is active, and plays a custom 16-second voice announcement so responders know exactly where to go. If the first number is busy or goes unanswered, it cycles through backups automatically. Advanced call progress detection handles hang-up cleanly on busy signals, silence, dial tone, CPC, or timeout — no guessing, no stuck calls.
Whether you're outfitting elevators, parking ramps, pool decks, lobbies, or machine rooms, the E-1600-03B meets the latest ADA and ASME A17.1 standards right out of the box. Automatic Noise Canceling keeps conversations clear even in loud environments, and the flexible surface mount design fits single or double gang boxes, 4×4 junction boxes, or standard elevator phone enclosures.
Our Expert Take: The E-1600-03B is a strong go-to choice for facilities managers who need a code-compliant, low-maintenance emergency phone that just works. The non-volatile voice announcer is especially valuable in large buildings or parking structures with multiple levels — responders hear the exact location every time without relying on a dispatcher to ask. If your installation is exposed to heavy rain, outdoor weather, or condensation, consider stepping up to the E-1600A-EWP, which adds Enhanced Weather Protection rated to IP66. For indoor or protected outdoor locations, the E-1600-03B covers everything you need at a practical price point.
Key Features
- ADA compliant – automatic "Call Connected" LED, Grade 2 Braille labeling, and location identification via voice or DTMF
- ASME A17.1 compliant when used with the LV-1K panel
- Handsfree operation – press the button and talk, no handset required
- Built-in 16-second non-volatile digital voice announcer for custom location messages
- Dials up to 5 emergency numbers plus 2 central station numbers, cycling through backups on busy or no-answer
- Automatic Noise Canceling (ANC) for clear audio in loud parking garages, machine rooms, and busy public spaces
- Phone line powered – no batteries or external power supply needed (requires 24VDC / 20mA minimum talk battery)
- Advanced call progress detection – hangs up on busy signal, silence, dial tone, CPC, or timeout
- Auto-answer capability – can be programmed to accept incoming calls remotely
- 14-gauge marine grade 316 stainless steel with vandal-resistant brushed finish
- Surface mounts to single/double gang boxes, 4×4 junction boxes, or elevator phone enclosures
- Wide operating temperature range: -15°F to 130°F
Technical Specifications
- Power: Telephone line powered (24VDC / 20mA minimum)
- Dimensions: 7.22″ H × 5.36″ W × 1.55″ D (183 × 149 × 39 mm)
- Material: 14-gauge marine grade 316 stainless steel, #4 brushed finish
- Operating Temperature: -15°F to 130°F (-26°C to 54°C)
- Humidity: 5% to 95% non-condensing
- Mounting: Surface mount (single/double gang, 4×4 box) or recess mount in elevator enclosures
- Connections: Two gel-filled butt connectors (included)
- Shipping Weight: 3 lbs (1.36 kg)
- Compliance: ADA, FCC Part 68, FCC Part 15, ASME A17.1 (with LV-1K panel)
