Description

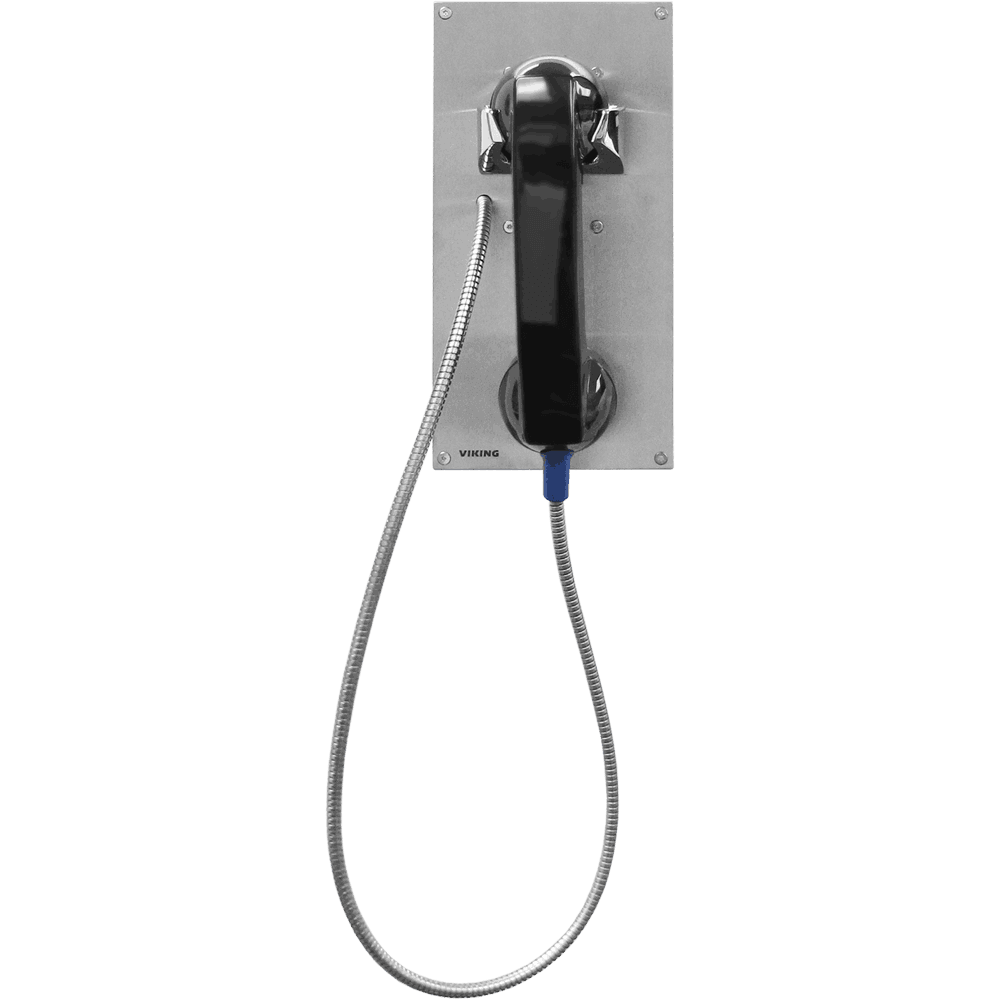

Need a tough, weather-proof phone that connects instantly when someone picks up the handset? The Viking K-1900-7-IP-EWP is a vandal-resistant VoIP panel phone built for outdoor or high-traffic areas. It auto-dials your programmed number (and rolls over to backups if busy or unanswered), controls gates or doors with its built-in relay, and stands up to rain, snow, and abuse thanks to its Enhanced Weather Protection (EWP) that meets IP66 standards.
Powered simply by PoE, it works seamlessly with your SIP-based VoIP system. Whether you're securing a gate at an apartment complex, providing courtesy service at a kiosk, or adding emergency access at a business, this phone delivers fast, dependable communication without complicated wiring.
Our Expert Take: If your installation sees direct weather exposure or heavy public use, go with the EWP version – the extra gaskets, sealed connections, and potted boards make the difference between a phone that lasts years versus one that fails in the first storm. Highly recommended for gate entry, apartments, parking facilities, and emergency stations. We rate it 4.9/5 for durability and ease in outdoor VoIP deployments.
Key Features
- Vandal-Resistant Build — 14-gauge 316 stainless steel front panel, permanent laser-etched graphics, heavy-duty metal hook switch, armored handset cable, and T-10 security Torx screws.
- Enhanced Weather Protection (EWP) — Designed to meet IP66 standards with foam gaskets, sealed connections, gel-filled butt connectors, and potted circuit boards – ideal for outdoor exposure to rain, condensation, or humidity up to 100%.
- Auto-Dial Hot-Line Operation — Lifts the handset and immediately dials a 1-20 digit programmable number; rolls over to up to 3 additional numbers if busy or no answer.
- Built-in Relay Control — SPDT 2 Amp contacts activate on answer (for door/gate strikes) or while off-hook (great for triggering cameras). Optional RC-4A for secure remote control.
- Easy SIP & PoE Integration — Works with most SIP VoIP systems; powered by PoE Class 1 (<4 Watts) – no separate power supply needed. Supports G.711u/a and G.722 codecs, outbound proxy, VLAN tagging, and peer-to-peer.
- User-Friendly Extras — Adjustable ring volume and cadence, amplified hearing-aid-compatible handset with sealed volume button, selectable auto-answer for monitoring, and network-downloadable firmware.
- Flexible Mounting — Flush mounts in a standard double-gang box (not included) or surface mounts with optional VE-5x10 box. Add the optional VE-LIGHT kit for nighttime visibility.
- Wide Temperature Range — Operates from -40°F to 140°F, perfect for harsh environments.
Technical Specifications
- Power: PoE Class 1 (<4 Watts)
- Dimensions (EWP): 5.0” x 10.0” x 5.1” (127 mm x 254 mm x 130 mm)
- Shipping Weight: 3.8 lbs (1.72 kg)
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Humidity: Up to 100%
- Handset Cable: 52” to 57” (132 cm to 145 cm) armored
- Audio Codecs: G.711u, G.711a, G.722
- Network: 10/100 Base-TX (auto crossover), SIP 2.0 (RFC3261), IEEE 802.3af PoE
- Relay: SPDT 2 Amp contacts
- Connections: (1) RJ45, (3) gel-filled butt connectors
- Regulatory: CE, FCC Part 15, Canada ICES-003 Class A
