Description

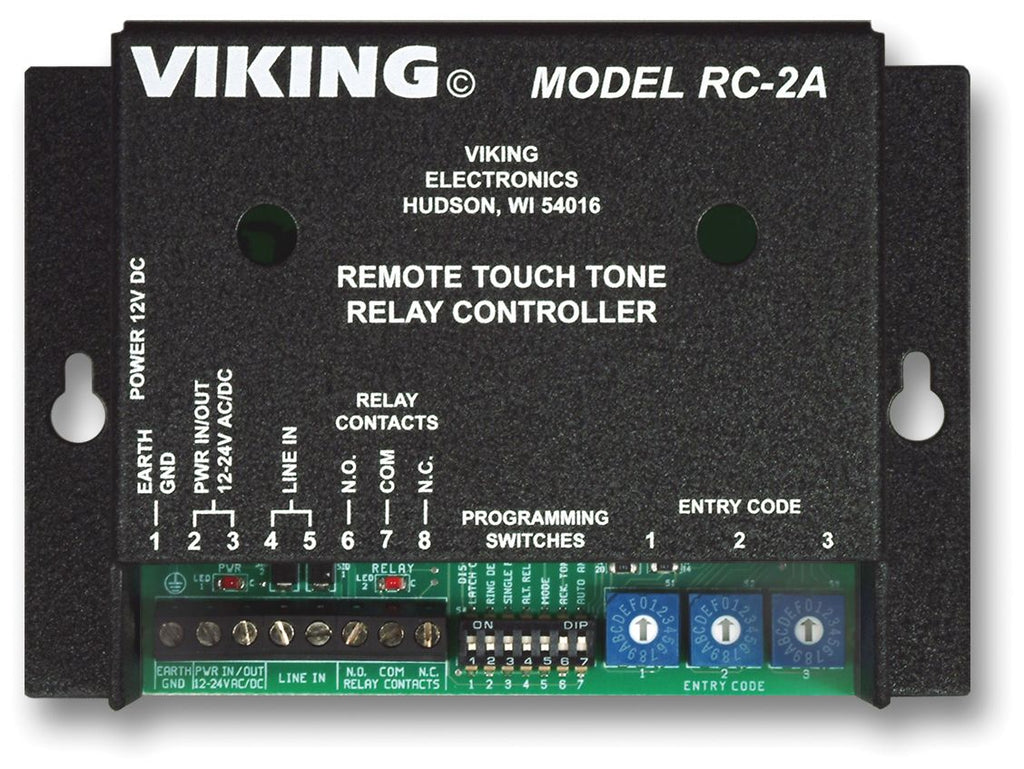

If you need to remotely unlock a door, reset equipment, or control a device from any standard phone, the Viking RC-2A gives you simple, secure relay control triggered by nothing more than a touch tone call.
The RC-2A installs locally in parallel on any analog communications path — analog CO lines, PABX/KSU stations, or alongside Viking's W-Series Doorboxes — passively monitoring for touch tone commands without interrupting normal phone operation. For off-premise use, it answers incoming calls after a selectable ring delay and waits for your programmable access code before allowing any relay activation. Once authenticated, you can trigger the built-in SPDT relay to control door strikes, gates, lighting, security systems, HVAC equipment, pumps, fans, or even remotely reset a PABX or KSU. After 60 seconds, the unit automatically disconnects and returns to secure mode, keeping unauthorized access out.
Screw terminal connections and onboard DIP switch programming make installation fast and straightforward, and the universal 12–24VAC/DC power input means you can run multiple units from a single power adapter.
Our Expert Take: The RC-2A is a reliable, no-frills solution for facilities that need remote device control over an existing analog phone line without investing in a networked system. It pairs especially well with Viking's W-Series Doorboxes for building entry applications where you want a secondary way to buzz in visitors from an off-site phone. The programmable access code and auto-secure timeout are practical safeguards that make this unit suitable for higher-security environments where leaving a relay in an open state is simply not an option.
Key Features
- Operates from any standard touch tone telephone — local or off-premise
- Installs in parallel on analog CO lines, PABX/KSU stations, or with Viking W-Series Doorboxes
- Field programmable access code prevents unauthorized relay activation
- SPDT relay with selectable closure times for flexible device control
- Selectable ring delay: 1, 2, 6, or 15 rings before answering
- Automatic disconnect and return to secure mode after 60 seconds
- Universal 12–24VAC/DC power input — power multiple units from one adapter
- Easy installation with screw terminals and DIP switch programming
Technical Specifications
- Power Input: Universal 12–24VAC/DC
- Relay Type: SPDT
- Ring Delay Options: 1, 2, 6, or 15 rings
- Secure Mode Timeout: Automatic disconnect after 60 seconds
- Programming Method: DIP switch and touch tone phone
- Compatible Lines: Analog CO lines, analog PABX/KSU stations, Viking W-Series Doorboxes
