Description

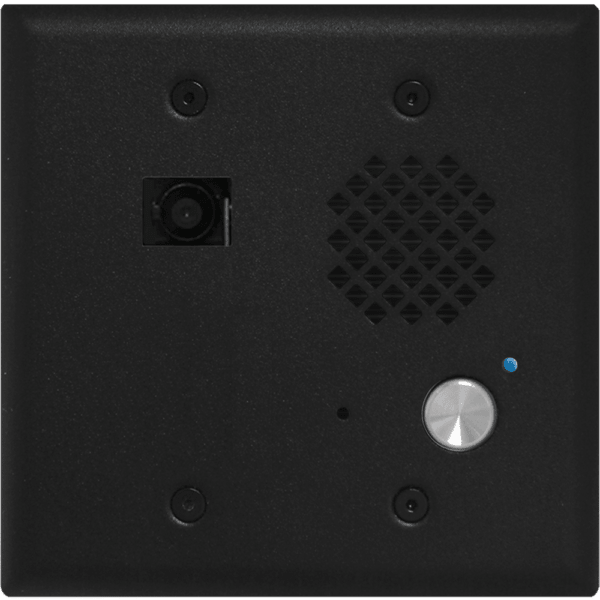

Wondering who's at the door before you open it? The Viking E-65-BK gives you clear two-way hands-free audio and sharp color video right from your existing analog phone system, all in a compact flush-mount design that fits a standard double-gang electrical box.
From anywhere on your phone line — the kitchen, a back office, or even a remote station — you can see and speak with visitors without ever touching the door. The built-in color camera delivers composite video output, while adjustable microphone and speaker volume controls keep conversations clear in any environment. Intelligent call progress detection automatically ends calls when finished, so there's no fumbling with buttons or hanging up manually.
The E-65-BK is a natural fit for homes, small offices, and light commercial entryways. It works seamlessly with Viking controllers including the C-200, C-250, C-500, and C-2000B, or on unused analog station ports when paired with Viking dialers like the K-1900-5 or K-1900-30.
Our Expert Take: The E-65-BK is a clean, no-fuss video entry solution for indoor or sheltered outdoor locations where you want the convenience of video without a full IP system overhaul. The -30°F to 150°F operating range handles most climates well, but if the unit will face direct rain or heavy moisture, step up to the E-65-BK-EWP for enhanced weather protection — it's worth the upgrade for any truly exposed installation. If you ever need to refresh the look without replacing the whole unit, the PNL65-BK replacement faceplate is a handy option to keep in mind.
Key Features
- Built-in high-resolution color camera with composite video output
- Two-way hands-free speakerphone with adjustable microphone and speaker volume controls
- Selectable auto-answer mode for passive door monitoring
- Intelligent call progress detection automatically ends calls when finished
- Flush mounts in a standard double-gang electrical box; surface mount options available with Viking VE-5x5 series boxes
- Compatible with Viking C-200, C-250, C-500, and C-2000B controllers
- Works on unused analog station ports or with Viking K-1900-5 / K-1900-30 dialers
- Vandal-resistant and weather-resistant construction
- Extended operating temperature range: -30°F to 150°F
- Replacement faceplate available (PNL65-BK)
- EWP version (E-65-BK-EWP) available for enhanced weather protection in direct outdoor exposure
Technical Specifications
- Power: Supplied by phone line or controller
- Video: High-resolution color camera, composite video output
- Audio: Hands-free speakerphone with adjustable mic and speaker volume
- Mounting: Flush in standard double-gang box; surface mount with VE-5x5 series boxes
- Dimensions: Faceplate approx. 4.875″ x 4.938″
- Maximum Wire Run: Up to 750 ft (RG59/RG6 + CAT5 recommended for video)
- Operating Temperature: -30°F to 150°F
- Finish: Black
- Certifications: FCC Part 68, FCC Part 15
