Description

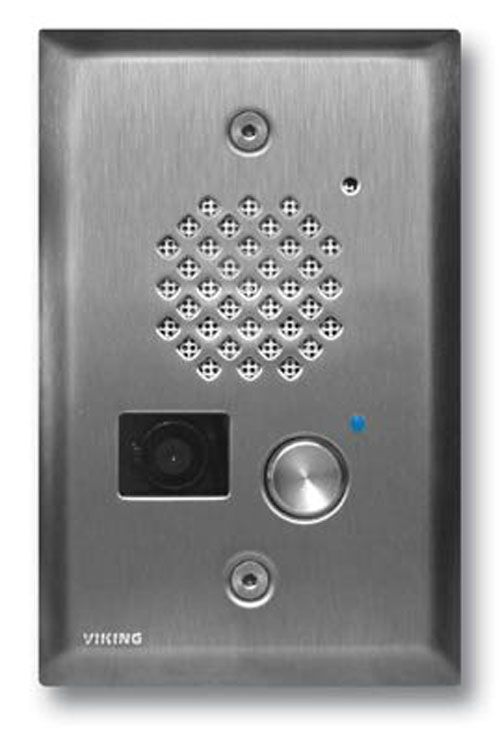

- Viking video entry phone in Stainless Steel
- E-50 Series video entry phones are compact weather and vandal resistant speaker phones designed to providetwo-way handsfree audio communication and color composite video of who is at your door or gate
- Compact size allows it to be mounted in a standardsingle gang electrical box
- Replacement E-50 faceplates (PNL50) can be purchased separately - Can share a single phone line with house or small business telephones when used with a Viking model C-200 or C-2000A Entry Phone controller
- Can alsobe connected to an unused analog station port (programmed for ring down) on a phone system or connected directly to a telephone line when used with aViking model K-1900-5 auto dialer
- Features a built-in high resolution color video camera microphone and speaker volume controls selectable autoanswer for monitoring and intelligent call progress detection for automatic hang-up when the call is completed
- Door or gate communication business delivery entrances
- Use with a Viking C-200to control one E-50 on a single phone line
- Use with a Viking C-2000A to control 1 to 4 E-50s and door/gate control on a single phone line
- Provide unique front and back door chimes and paging when used with a Viking SLP-1 and C-2000A
- Use with a Viking K-1900-5 for automatic speed dialing on telephone lines or analog PABX/KSU stationports
- Use on an analog PABX station port with programmable ringdown capability
- Built-in high resolution color video camera with wide viewing
- Tilt/swivel adjustments
- Wide operating temperature of -30 F to 150 F
- Audio and video transmission on one CAT5E cable
- Compact size: front panel is the size of a typical single gang midsize wall plate
- Mounting: flush mount ina single gang (1.7inch deep x 2.1inch wide min) electrical box or surface mount in a Viking model VE-3x5 (not included)
- Weather resistant features: mylar speaker faceplate gasket mic and speaker gasket internally sealed (IP67) push button switch sealed camera lens potted camera circuit board stainless steel phone and camera mounting hardware
- Vandal resistant features: 18 gauge stainless steel faceplate stainless steel push button stainless steel speaker screen impact and scratch resistant camera lens and hex drive mounting screws
- Microphone and speaker volume controls
-Programmable intelligent call progress detection for automatic hang-up on CPC silence busy signal or time out
- Selectable auto answer feature for monitoring
- Programmable VOX (mic/speaker)switching speed
- Power: telephone line powered (18 VDC/20mA minimum)
- Dimensions: faceplate: 123.8mm x 79.4mm x 4.6mm (4.875inch x 3.125inch x 0.18inch) phone board: 71mm x 46mm x 42mm (2.8inch x 1.8inch x1.65inch)
- Speaker volume: approximately 62db maximum @ 1m
- Ring voltage: 25V AC RMS minimum (for auto answer)
- CPC disconnect time: 300ms minimum
- Brushed stainless steel
VKE50SS
