Description

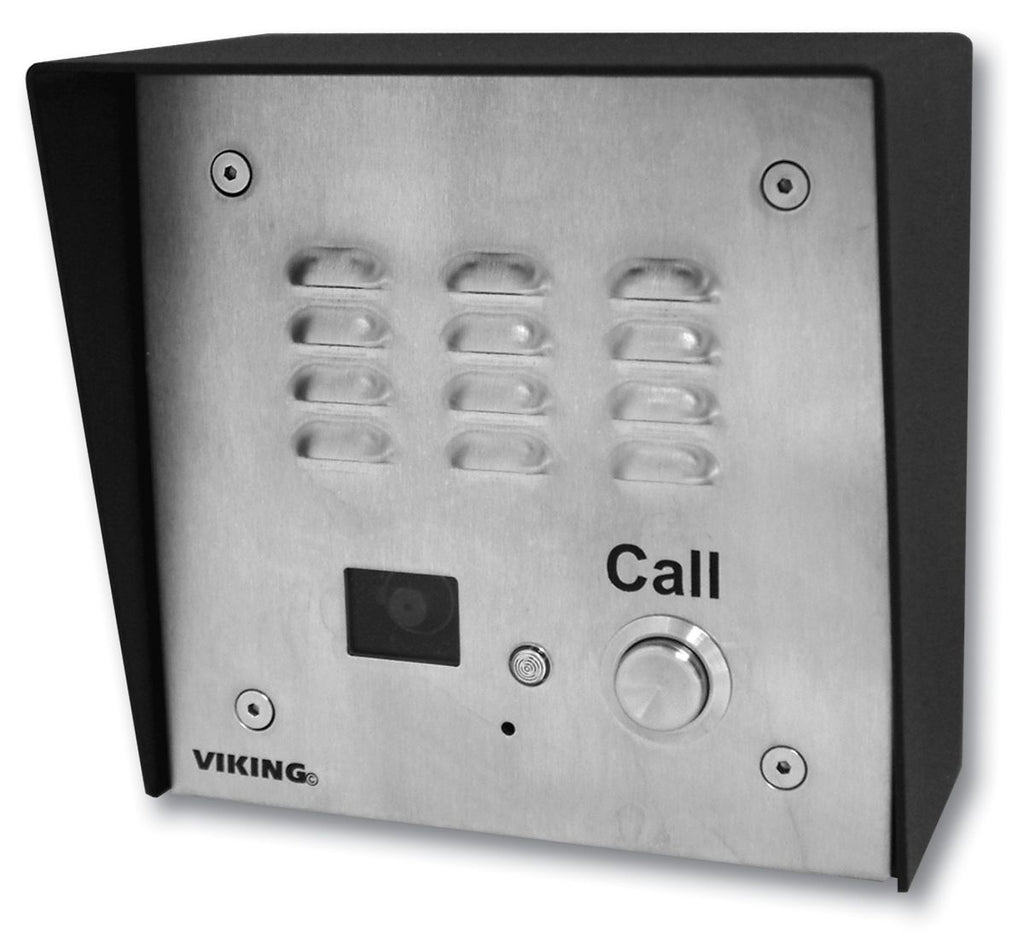

Tired of missing visitors or second-guessing who's at your door? The Viking E-35 delivers clear two-way handsfree audio and live color video over a single CAT5E cable, integrating directly into your existing analog phone system without complicated new wiring.
Built tough for real-world installations, the E-35 features a 14-gauge louvered stainless steel faceplate with heavy-duty metal call button, hex drive mounting screws, and a fully sealed internal push button switch rated IP67. Its built-in color camera offers a wide viewing angle with tilt and swivel adjustment, operates in temperatures from -30°F to 150°F, and sits behind an impact and scratch resistant lens with a potted circuit board for long-term reliability. Whether you're protecting a school entrance, managing an apartment building, or securing a corporate lobby, the E-35 is built to handle daily abuse and extreme conditions without missing a beat.
The built-in 5-number auto-dialer cycles through programmed numbers on busy or no-answer, and advanced call progress detection handles disconnects automatically on busy signal, reorder, CPC, dial tone return, or configurable timeout — so your front door never goes unattended. The selectable auto-answer feature even allows passive monitoring when needed.
Our Expert Take: The E-35 is a smart pick for installers who want proven analog reliability with the convenience of single-cable audio and video over CAT5E — no separate video coax run required. The IP67-sealed push button and potted camera board make this unit genuinely weather resistant out of the box, and if your installation faces truly harsh exposure, the optional Enhanced Weather Protection (EWP) version brings it up to full NEMA compliance. For sites already running a VoIP or SIP system, take a look at the E-35-IP instead, which adds PoE power and SIP registration.
Key Features
- Built-in 5-number auto-dialer with advanced call progress detection (busy, reorder, CPC, dial tone return, max call timeout, selectable silence timeout)
- Built-in high-resolution color video camera with wide viewing angle and tilt/swivel adjustment
- Audio and video transmitted over a single CAT5E cable
- Wide camera operating temperature: -30°F to 150°F
- Vandal resistant design: 14-gauge louvered stainless steel faceplate, stainless steel speaker/mic screen, heavy-duty metal call button, hex drive mounting screws, impact and scratch resistant camera lens
- Weather resistant construction: Mylar speaker, faceplate gasket, mic and speaker gasket, IP67-sealed push button switch, sealed camera lens, potted camera circuit board, stainless steel mounting hardware
- Optional Enhanced Weather Protection (EWP) available to meet NEMA requirements
- Red off-hook LED for visual call status indication
- Selectable auto-answer feature for passive monitoring
- Selectable push button disconnect and VOX switching speed
- Independent volume adjustments for microphone and speaker
- Optional VE-5x5 surface mount box available
Technical Specifications
- Wiring: Single CAT5E cable carries both audio and video
- Camera: High-resolution color with wide viewing angle, tilt/swivel adjustable, impact and scratch resistant lens, potted circuit board
- Camera Operating Temperature: -30°F to 150°F
- Push Button Rating: IP67 internally sealed
- Faceplate Material: 14-gauge louvered 316 stainless steel
- Auto-Dialer: Up to 5 programmable numbers
- Call Disconnect Methods: Busy signal, dial tone return, CPC, reorder signal, max call timeout, selectable silence timeout
- Weather Protection Option: EWP version available (NEMA compliant, see DOD# 859)
- Surface Mount Option: VE-5x5 box (sold separately)
