Description

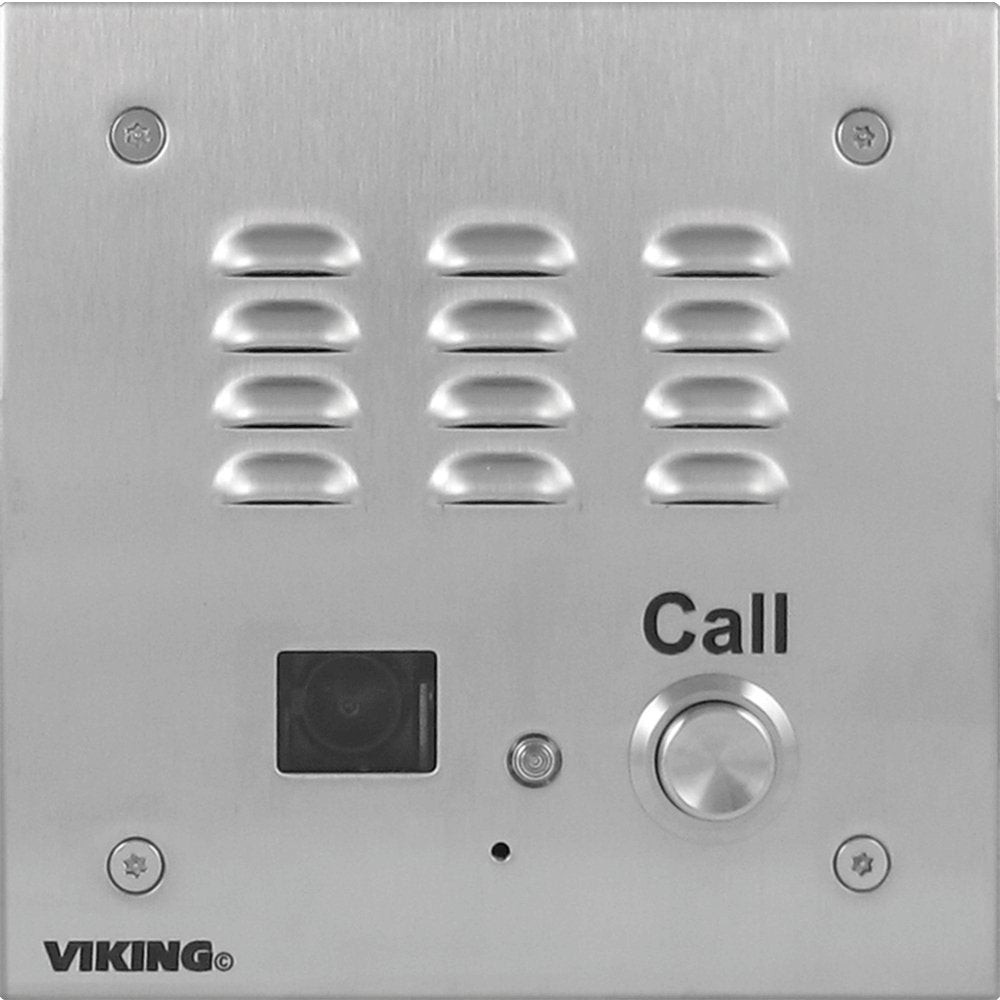

Tired of not knowing who's at the gate or door when conditions outside are anything but ideal? The Viking E-35-EWP gives you clear two-way handsfree voice and live color video even in harsh weather, vandal-prone, or extreme temperature environments.
This rugged stainless steel entry phone connects directly to a CO line, analog PABX/KSU station, or a Viking door or gate controller — no complicated VoIP infrastructure required. The built-in 5-number auto-dialer cycles through programmed numbers on ring, no answer, or busy until someone picks up, and advanced call progress detection handles automatic hang-up when the call is done. Audio and video both travel over a single CAT5E cable, keeping installation clean and simple.
Designed for locations where weather and abuse are daily realities, the E-35-EWP layers protection at every level — from its 14-gauge louvered stainless steel faceplate and hex drive mounting screws to its urethane encapsulated circuit boards and internally sealed field-adjustable POTS and DIP switches. Whether you're securing a hospital loading dock, apartment gate, parking structure, or industrial facility, this unit is built to stay reliable where lesser phones fail.
Our Expert Take: The E-35-EWP is the right call when you need analog simplicity combined with serious environmental hardening. The Enhanced Weather Protection package here goes well beyond a standard weatherproof rating — hand-soldered silicone sealed connections, anti-corrosive gel-filled butt connectors, and closed cell foam gasketing add up to a unit that genuinely holds up over years of outdoor exposure. If your site runs a SIP-based phone system instead of analog, the E-35-IP is the VoIP counterpart to consider. But for analog installs in demanding outdoor conditions, the E-35-EWP is hard to beat.
Key Features
- Enhanced Weather Protection (EWP): rubber gaskets and boots, closed cell foam gasketing, hand-soldered silicone sealed connections, anti-corrosive gel-filled butt connectors, and urethane encapsulated circuit boards
- Built-in high-resolution color video camera with wide operating temperature of -30°F to 150°F and impact and scratch resistant lens
- Audio and video transmission over a single CAT5E cable
- Built-in 5-number auto-dialer — programmable to dial up to 5 numbers on ring, no answer, or busy and cycle until answered
- Connects to CO line, analog PABX/KSU station, or Viking door/gate controller
- Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC, reorder signal, maximum call timeout, and selectable silence timeout
- Vandal resistant: 14-gauge louvered stainless steel faceplate with stainless steel speaker/mic screen, heavy-duty metal call button, and hex drive mounting screws
- Selectable auto-answer feature for remote monitoring
- Non-volatile memory retains programming through power loss
- Red "off-hook" LED indicator with volume adjustments for both microphone and speaker
- Selectable VOX switching speed and selectable push button disconnect
- Optional VE-5X5 surface mount box available
Technical Specifications
- Connection: CO line, analog PABX/KSU station, or Viking door/gate controller
- Video Transmission: Color video over single CAT5E cable (audio and video combined)
- Camera Operating Temperature: -30°F to 150°F
- Faceplate Material: 14-gauge louvered 316 stainless steel
- Weather Protection: EWP – rubber gaskets, closed cell foam gasketing, silicone sealed connections, urethane encapsulated circuit boards
- Memory: Non-volatile
- Auto-Dialer: Up to 5 programmable numbers
- Optional Accessory: VE-5X5 surface mount box
