Description

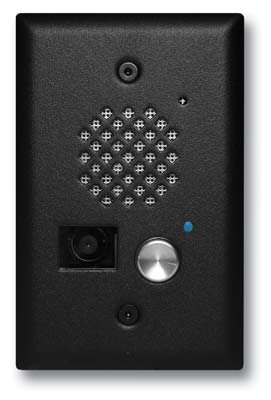

Need a compact, weather-resistant door phone with live color video that fits in a standard single-gang electrical box? The Viking E-50-BK delivers clear two-way audio and high-resolution color video over a single CAT5E cable, all in a sleek textured black faceplate sized to match a typical single-gang midsize wall plate.
Despite its compact footprint, the E-50-BK is packed with serious weather and vandal resistance features — an IP67-rated push button, potted camera circuit board, sealed camera lens, Mylar speaker, and UV stable powder coating make it ready for demanding environments. With an operating temperature range of -30°F to 150°F, it handles everything from frigid parking structures to sun-baked entryways without missing a beat. Microphone and speaker volume controls, programmable VOX switching, and intelligent call progress detection for automatic hang-up on busy signal, silence, CPC, or timeout keep day-to-day operation smooth and hands-off.
Whether you're securing a medical office, residential lobby, or corporate entry point, the E-50-BK's single-cable audio and video transmission simplifies installation and keeps your wiring clean. A selectable auto-answer feature even lets authorized staff monitor the entry point without a visitor pressing the button.
Our Expert Take: The E-50-BK is the right pick when aesthetics and space are tight but you still need reliable video entry performance. The satin black finish blends into modern interiors far better than stainless steel alternatives, and the single CAT5E cable for both audio and video is a genuine time-saver during installation. If your location is fully exposed to driving rain or harsh outdoor conditions, look into the optional Enhanced Weather Protection (EWP) variant for an extra layer of protection. Also worth noting — if you ever need to refresh the look, Viking's PNL-50 replacement faceplates are available in all five standard finishes, including satin black, brushed stainless steel, oil rubbed bronze, polished brass, and satin white.
Key Features
- Built-in high-resolution color video camera with wide viewing angle and tilt/swivel adjustment
- Audio and video transmission over a single CAT5E cable
- Extended operating temperature range: -30°F to 150°F
- Compact single-gang form factor – front panel sized to a typical single-gang midsize wall plate
- Weather resistant construction: Mylar speaker, faceplate gasket, mic and speaker gasket, IP67-rated push button, sealed camera lens, potted camera circuit board, and UV stable powder coating
- Vandal resistant features: 18-gauge steel faceplate, stainless steel push button and speaker screen, scratch-resistant powder coating, impact and scratch-resistant camera lens, and hex drive mounting screws
- Blue LED for push button location, ringing indication, and off-hook status
- Programmable intelligent call progress detection – automatic hang-up on CPC, silence, busy signal, or timeout
- Selectable auto-answer for entry monitoring without visitor interaction
- Programmable VOX (mic/speaker) switching speed
- Microphone and speaker volume controls
- Optional Enhanced Weather Protection (EWP) available; PNL-50 replacement faceplates available in five standard finishes
Technical Specifications
- Faceplate Material: 18-gauge steel with textured black powder coating
- Faceplate Size: Single-gang midsize wall plate equivalent
- Mounting: Flush mount in single-gang electrical box (min. 2.25″ deep x 2.00″ wide x 2.84″ tall) or surface mount with optional Viking VE-3x5 box
- Wiring: Single CAT5E cable for combined audio and video
- Camera: High-resolution color with tilt/swivel adjustment and sealed, impact-resistant lens
- Push Button: IP67 internally sealed stainless steel
- Operating Temperature: -30°F to 150°F
- Available Finishes: Brushed Stainless Steel, Oil Rubbed Bronze, Polished Brass, Satin White, Satin Black
