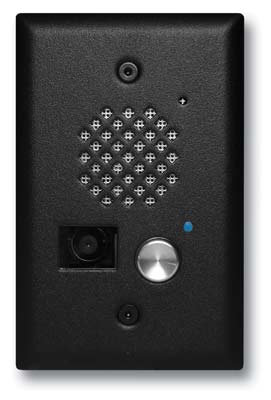

Description
Built-in high resolution color video camera with wide viewing tilt/swivel adjustments and wide operating temperature of -30 F to 150 F
Audio and video transmission on one CAT5E cable (see page 5)
Compact size: Front panel is the size of a typical single gang midsize wall plate
Mounting: Flush mount in a single gang electrical box (2.25 deep x 2.00 wide x 2.84 tall min) electrical box or surface mount in a Viking model VE-3x5 (not included - see Fax Back Document 424)
Available in 5 standard faceplate finishes: Brushed Stainless Steel Oil Rubbed Bronze Polished Brass Satin White and Satin Black
PNL-50 faceplates: Replacement faceplates with matching screws available in all five standard finishes
Weather Resistant Features: Mylar speaker faceplate gasket mic and speaker gasket internally sealed (IP67) push button switch sealed camera lens potted camera circuit board stainless steel phone and camera mounting hardware and UV stable weather resistant powder coating (excluding E-50-SS )
Optional EnhancedWeather Protection (EWP) available
Vandal Resistant Features: 16 gauge polished brass or 18 gauge stainless steel faceplate stainless steel push button stainless steel speaker screen scratch resistant powder coating impact and scratch resistant camera lens and hex drive mounting screws
Microphone and speaker volume controls
Programmable Intelligent call progress detection for automatic hang-up on CPC silence busy signal or time out
Selectable auto answer feature for monitoring
Programmable VOX (mic/speaker) switching speed
Blue LED helps located push button indicate ringing and off-hook
Audio and video transmission on one CAT5E cable (see page 5)
Compact size: Front panel is the size of a typical single gang midsize wall plate
Mounting: Flush mount in a single gang electrical box (2.25 deep x 2.00 wide x 2.84 tall min) electrical box or surface mount in a Viking model VE-3x5 (not included - see Fax Back Document 424)
Available in 5 standard faceplate finishes: Brushed Stainless Steel Oil Rubbed Bronze Polished Brass Satin White and Satin Black
PNL-50 faceplates: Replacement faceplates with matching screws available in all five standard finishes
Weather Resistant Features: Mylar speaker faceplate gasket mic and speaker gasket internally sealed (IP67) push button switch sealed camera lens potted camera circuit board stainless steel phone and camera mounting hardware and UV stable weather resistant powder coating (excluding E-50-SS )
Optional EnhancedWeather Protection (EWP) available
Vandal Resistant Features: 16 gauge polished brass or 18 gauge stainless steel faceplate stainless steel push button stainless steel speaker screen scratch resistant powder coating impact and scratch resistant camera lens and hex drive mounting screws
Microphone and speaker volume controls
Programmable Intelligent call progress detection for automatic hang-up on CPC silence busy signal or time out
Selectable auto answer feature for monitoring
Programmable VOX (mic/speaker) switching speed
Blue LED helps located push button indicate ringing and off-hook
