Description

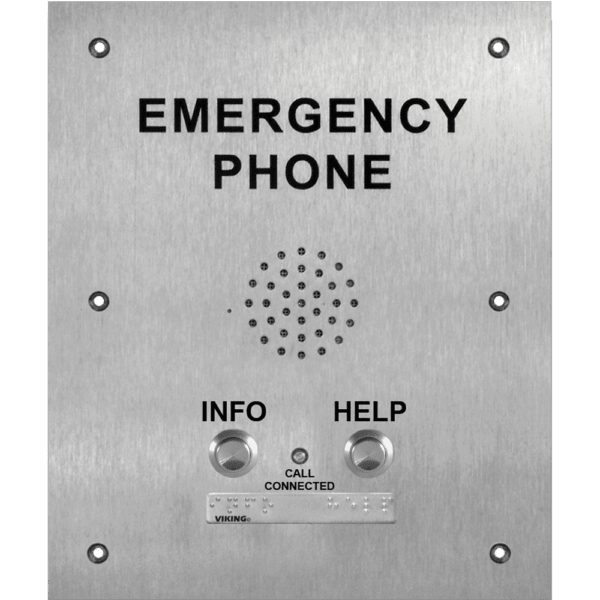

When someone needs help right away—in a parking garage, on a college campus, or at an ATM—they shouldn’t have to hunt for a phone or worry if it will work in the rain. The Viking E-1600A-TP2-EWP gives them a tough, reliable way to call for assistance with one push of a button.
This two-button emergency phone is a direct drop-in replacement for Talk-A-Phone units. It works on any standard analog phone line and meets strict ADA rules so everyone can use it easily. The built-in Enhanced Weather Protection (EWP) makes it ideal for outdoor or wet locations where rain, snow, or condensation is common.
Expert Take: Highly recommended for any site that needs ADA compliance and reliable outdoor performance. Pair it with a Viking strobe light for even better visibility.
Key Features
- ADA Compliant — Automatically lights the “Call Connected” LED, sends a unique location ID or voice announcement, and includes Grade 2 Braille labeling.
- Two Large Buttons — “Help” button dials up to 5 emergency numbers plus 2 central station numbers. “Info” button dials up to 3 non-emergency numbers.
- Hands-Free Operation — No handset to pick up—just push and talk.
- Reliable Call Handling — Cycles through backup numbers if the first line is busy or doesn’t answer. Hangs up on busy signal, silence, or timeout.
- Built-in Relay — On-board BLK-4-EWP module provides a contact closure or switched 12VDC to trigger a strobe light (external power required for relay).
- 16-Second Voice Announcer — Plays a custom location message so responders know exactly where the call is coming from.
- Enhanced Weather Protection (EWP) — Designed to meet IP66 standards with sealed components, gel-filled connectors, and potted boards—perfect for outdoor exposure.
- Vandal & Weather Resistant — Heavy 14-gauge 316 marine-grade stainless steel faceplate with brushed finish.
- Remote Programming — Change numbers, announcements, and settings from any touch-tone phone.
- Auto-Answer Capability — Can be programmed to answer incoming calls for monitoring.
Technical Specifications
- Power: Phone line powered (24VDC / 20mA minimum); Relay module uses included 120VAC to 12VDC 500mA UL-listed adapter
- Dimensions: 9.5” H x 11.75” W x 2” D (241mm x 299mm x 51mm)
- Shipping Weight: 6.4 lbs (2.9 kg)
- Operating Temperature: -15°F to 130°F (-26°C to 54°C)
- Humidity: Up to 100%
- Material: 14-gauge 316 stainless steel with #4 brushed finish
- Relay Rating: SPDT 1A @ 30VDC / 0.5A @ 125VAC
- Mounting: Flush mount compatible with Talk-A-Phone towers, stanchions, pedestals, wall boxes, and enclosures
- Connections: 14 gel-filled butt connectors
- Certifications: ADA, FCC Part 15, IP66 (EWP)
