Description

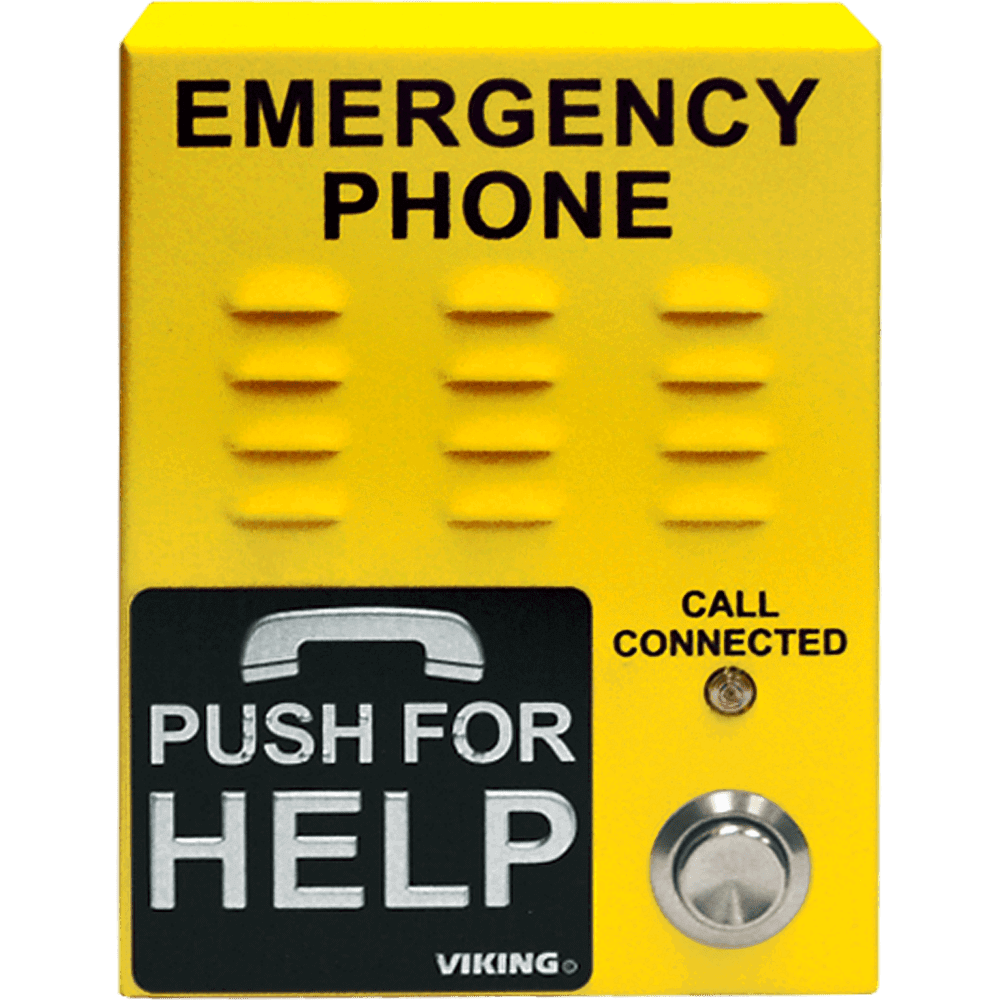

When every second matters in an emergency, the Viking E-1600-45A bright yellow handsfree emergency phone delivers fast, clear communication exactly where people need it most.
This ADA compliant unit connects to any standard analog phone line or PBX station port and gets to work instantly — no batteries, no external power, no complicated setup. Just press the big button and the E-1600-45A automatically dials up to five emergency numbers, plays a custom 16-second voice message announcing your location, lights a visible "Call Connected" LED, and sends a DTMF location code. If the first number is busy or goes unanswered, it automatically cycles through backup numbers until help is reached. Built from 16-gauge steel with a durable yellow powder coat finish, this compact unit handles the daily demands of elevators, parking ramps, pools, medical centers, and public access areas without missing a beat.
The bold yellow color makes it instantly recognizable in an emergency, and its wide operating range of -15°F to 130°F means it performs reliably whether it's mounted in a cold parking garage or a sun-baked outdoor corridor. Flexible mounting options — surface, single-gang box, 4″ x 4″ junction box, or recess mount in elevator phone boxes — make installation straightforward in virtually any location.
Our Expert Take: The E-1600-45A is the smart pick when you want maximum visibility, full ADA compliance, and proven reliability at the best value for indoor installations. The high-visibility yellow finish makes it easy to spot in a panic, and the non-volatile memory means your programmed numbers and location announcement stay intact even through power interruptions. If your installation is exposed to rain, snow, or outdoor condensation, step up to the E-1600-45A-EWP for enhanced weather protection. For elevators specifically, pairing this phone with the Viking LV-1K panel satisfies ASME A17.1 requirements — a detail worth confirming with your elevator inspector before finalizing the install.
Key Features
- Handsfree operation — press the big button and talk with no handset to fumble with
- ADA compliant out of the box — automatic "Call Connected" LED, location identification, and Grade 2 Braille label included
- Built-in 16-second non-volatile digital voice announcer clearly identifies your exact location
- Dials up to 5 emergency numbers plus 2 central station numbers, automatically cycling through backups on busy or no-answer
- Automatic Noise Canceling (ANC) for crystal-clear audio in loud environments
- Advanced call progress detection — hangs up cleanly on busy signal, silence, dial tone, or CPC signal
- Phone line powered — requires only 24VDC / 20mA minimum from the line, no batteries or AC power ever needed
- Remotely programmable from any touch-tone phone to update numbers or recorded messages
- Auto-answer capable for two-way monitoring on incoming calls
- Rugged 16-gauge steel construction with durable yellow powder coat finish built for high-traffic public use
- Wide operating temperature range: -15°F to 130°F
- Flexible mounting — surface mount to walls, posts, single-gang or 4″ x 4″ junction boxes, or recess mount in elevator phone boxes
Technical Specifications
- Power: Telephone line powered (minimum 24VDC / 20mA loop current)
- Dimensions: 5.25″ H x 4.0″ W x 2.0″ D (133mm x 102mm x 51mm)
- Operating Temperature: -15°F to 130°F (-26°C to 54°C)
- Humidity: 5% to 95% non-condensing
- Material: 16-gauge steel with textured yellow powder paint
- Connections: Two gel-filled butt connectors
- Voice Memory: 16 seconds, non-volatile
- Shipping Weight: 2.5 lbs (1.13 kg)
- Certifications: FCC Part 68, FCC Part 15, ADA compliant, meets ASME A17.1 when paired with LV-1K panel
