Description

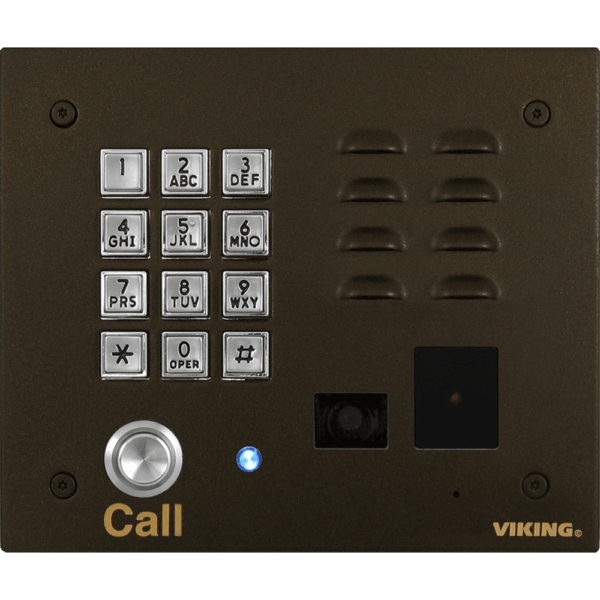

When the most demanding entry point needs video, proximity card, keypad, VoIP intercom, weather protection, and bronze aesthetics all in one unit, the Viking K-1775-BN-IPEWP delivers — an oil rubbed bronze vandal-resistant entry phone with Enhanced Weather Protection designed to meet IP66 standards.
PoE powers the unit from a single network cable. EWP construction adds sealed gaskets, gel-filled connectors, and a push button switch internally sealed per IP67. The built-in color camera transmits audio and video over CAT5E. The Wiegand proximity reader and heavy-duty metal keypad provide multi-method access control. Two SPDT 2-amp relay contacts fire door strikes or gates on command.
Our Expert Take: The K-1775-BN-IPEWP is the bronze-finish, weather-protected version of the K-1775-IP — best suited for exposed outdoor access points at luxury residential, hospitality, and high-security commercial properties where all four capabilities (video, proximity, keypad, VoIP intercom) are required and the aesthetics must be bronze.
Key Features
- Enhanced Weather Protection (EWP) designed to meet IP66; switch IP67
- SIP compliant — PoE powered
- Built-in color video camera with tilt/swivel; impact-resistant lens
- Built-in Wiegand proximity card reader
- Heavy-duty metal keypad; oil rubbed bronze faceplate
- Two SPDT 2-amp relay contacts for door/gate control
- VoIP audio detection — no push-to-talk; ANC
- Remotely programmable
Technical Specifications
- Power: PoE
- Protocol: SIP 2.0
- Weather Protection: IP66 (EWP); switch IP67
- Video: Analog color camera over CAT5E
- Card Reader: Wiegand proximity
- Relay: Two SPDT 2A contacts
- Finish: Oil rubbed bronze
