Description

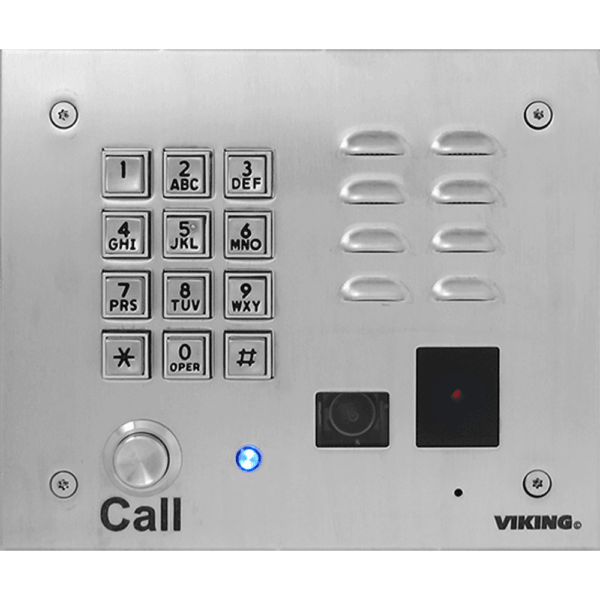

When your highest-security outdoor entry point needs video, proximity card access, keypad entry, and VoIP intercom in one weather-protected stainless steel unit, the Viking K-1775-IP-EWP is the complete solution — Enhanced Weather Protection designed to meet IP66 standards on top of the full-featured K-1775-IP platform.
PoE powers the entire unit from your existing network. EWP construction adds sealed gaskets, gel-filled connectors, Mylar speaker, self-draining mic mount, and a push button switch internally sealed per IP67. The built-in color camera transmits video over CAT5E with tilt/swivel adjustment. The Wiegand proximity reader and heavy-duty metal keypad support multi-method access control. Two SPDT 2-amp relay contacts handle door strikes or gates. The 14-gauge 316 stainless steel faceplate and T-10 Torx security screws ensure long-term durability against both weather and vandalism.
Our Expert Take: The K-1775-IP-EWP is Viking's most complete outdoor VoIP entry phone — video, proximity, keypad, intercom, and IP66 weather protection in one stainless package. It's the right call for transit stations, data center entrances, and any high-security outdoor access point where reliability in all conditions is non-negotiable.
Key Features
- Enhanced Weather Protection (EWP) designed to meet IP66; switch IP67
- SIP compliant — PoE powered
- Built-in color video camera with tilt/swivel; impact-resistant lens
- Built-in Wiegand proximity card reader
- 14-gauge 316 stainless steel faceplate; heavy-duty metal keypad
- T-10 Torx security screws; Mylar speaker; self-draining mic mount
- Two SPDT 2-amp relay contacts for door/gate control
- VoIP audio detection — no push-to-talk; ANC
- Remotely programmable; network downloadable firmware
Technical Specifications
- Power: PoE
- Protocol: SIP 2.0
- Weather Protection: IP66 (EWP); switch IP67
- Video: Analog color camera over CAT5E
- Card Reader: Wiegand proximity
- Relay: Two SPDT 2A contacts
- Faceplate: 14-gauge 316 stainless steel
