Description

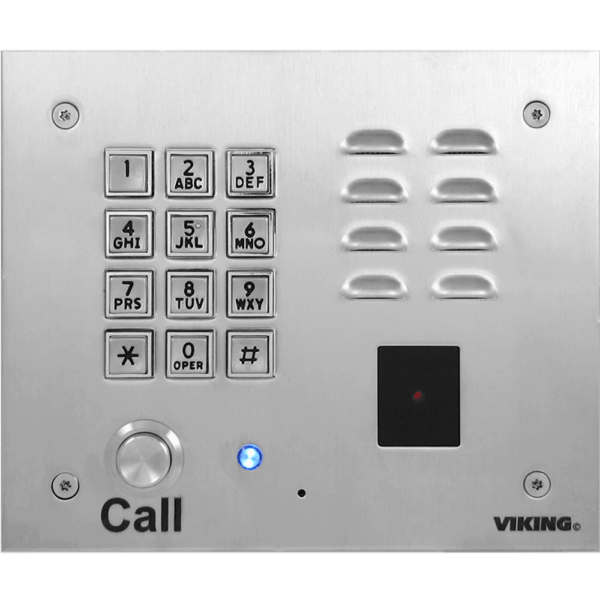

Need a VoIP entry phone that handles both keypad codes and proximity card access in one vandal-resistant package? The Viking K-1770-IP combines the rugged stainless steel K-1700 entry phone platform with a built-in Wiegand proximity card reader and SIP VoIP connectivity, all powered by PoE.
Users can enter through keypad code or present a proximity card — the K-1770-IP accepts both access methods and fires the onboard 2-amp relay to control a door strike or gate. The 14-gauge stainless steel faceplate, heavy-duty metal keypad, and T-10 Torx security screws are built for high-traffic installations. VoIP audio detection handles intercom calls without push-to-talk, and Automatic Noise Canceling keeps conversations clear in busy environments. Remote programmability and network downloadable firmware simplify system management.
Our Expert Take: The K-1770-IP is the right choice when a site needs both proximity card access and VoIP intercom capability at the same entry point without running two separate devices. For exposed weather locations, step up to the K-1770-IP-EWP. If video is needed alongside proximity, look at the K-1775-IP.
Key Features
- SIP compliant — PoE powered
- Built-in Wiegand proximity card reader
- Heavy-duty metal keypad for code-based access
- 14-gauge stainless steel faceplate; T-10 Torx security screws
- 2-amp relay contacts for door strike or gate control
- VoIP audio detection — no push-to-talk
- Automatic Noise Canceling (ANC)
- Remotely programmable; network downloadable firmware
- Handsfree operation
Technical Specifications
- Power: PoE
- Protocol: SIP 2.0
- Card Reader: Wiegand proximity
- Relay: 2A SPDT
- Faceplate: 14-gauge stainless steel
