Description

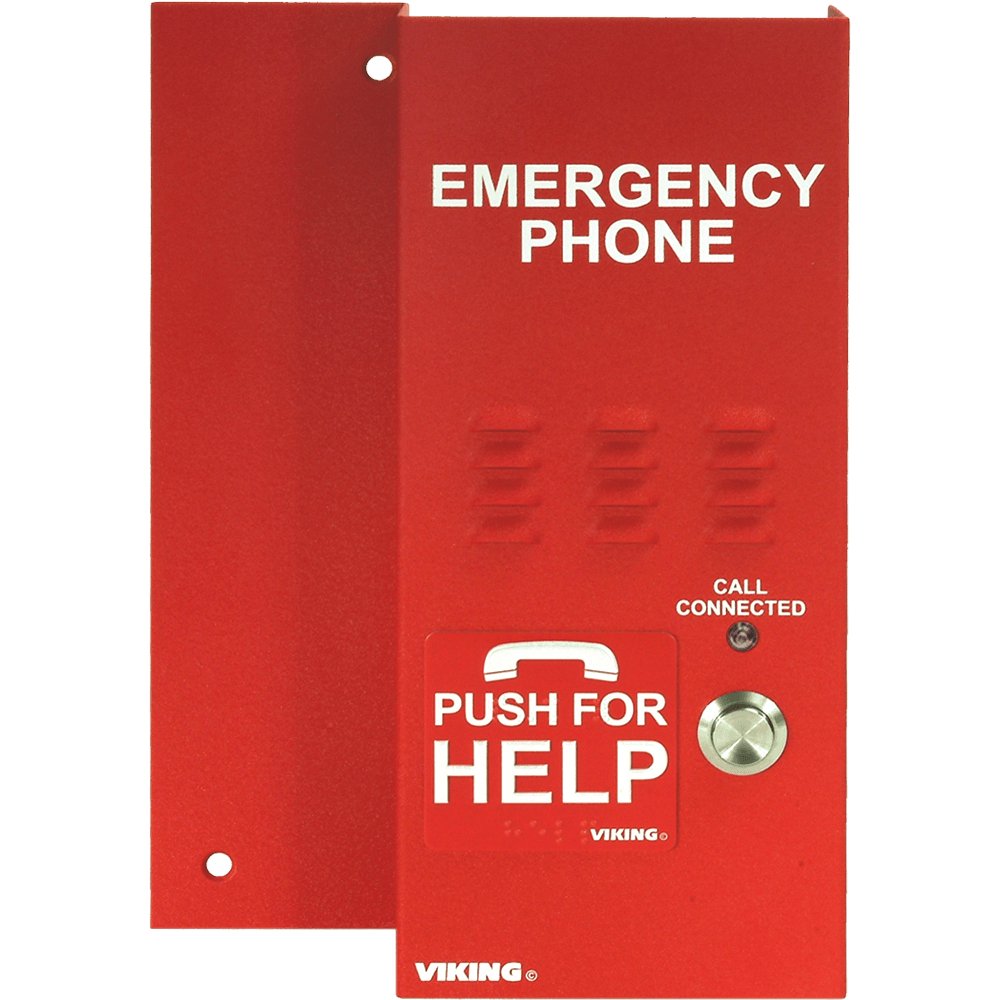

When a building occupant needs emergency help in an elevator, the Viking K-1600-EHFA delivers fast, reliable handsfree communication without requiring batteries, extra wiring, or complicated setup.
This ADA compliant emergency phone connects directly to any standard analog telephone line or analog station port and dials up to five programmable emergency numbers plus two central station numbers automatically. If a number is busy or goes unanswered, the unit cycles through backups to make sure help is reached. Once connected, a built-in 16-second digital voice announcer identifies the location of the call, or a DTMF tone code can be sent instead — keeping dispatchers informed without the caller needing to say a word.
Built from 16-gauge powder-painted aluminum with a vandal-resistant steel call button, the K-1600-EHFA is tough enough for daily use in elevators and public spaces. It fits a standard 10″ x 7″ x 3″ elevator rough-in box and is fully programmable from any touch-tone phone, making installation and future changes straightforward for any facilities team.
Our Expert Take: The K-1600-EHFA is a solid, no-nonsense choice for elevator emergency compliance. Because it is phone line powered, you never have to worry about battery maintenance or a separate power circuit — a real advantage in elevator environments where access is limited. If your installation is in an area exposed to moisture, condensation, or outdoor elements, consider the EWP-rated E-1600A-EWP instead, which is built to IP66 standards. For a standard indoor elevator application, the K-1600-EHFA hits every ADA requirement cleanly and reliably.
Key Features
- ADA compliant – meets requirements for elevator and emergency telephones
- Handsfree operation – no handset to pick up or hold
- Dials up to 5 programmable emergency numbers plus 2 central station numbers
- Cycles through backup numbers on busy or no-answer
- Non-volatile memory stores all programming, including phone numbers and location codes
- 16-second digital voice announcer automatically identifies call location, or delivers a DTMF touch-tone code
- Phone line powered – no batteries or external power required
- Programmable from any touch-tone phone
- Vandal-resistant steel call button
- Compatible with common Central Station Monitoring equipment
- Fits standard 10″ x 7″ x 3″ elevator rough-in box
Technical Specifications
- Material: 16-gauge red powder-painted aluminum
- Dimensions: 9.875″ x 6.86″ x 2.1″
- Rough-In Box Compatibility: Standard 10″ x 7″ x 3″ elevator box
- Power: Telephone line powered – no batteries or external power required
- Emergency Numbers: Up to 5 programmable numbers plus 2 central station numbers
- Programming: Remotely programmable from any touch-tone phone
- Memory: Non-volatile (retains programming through power loss)
