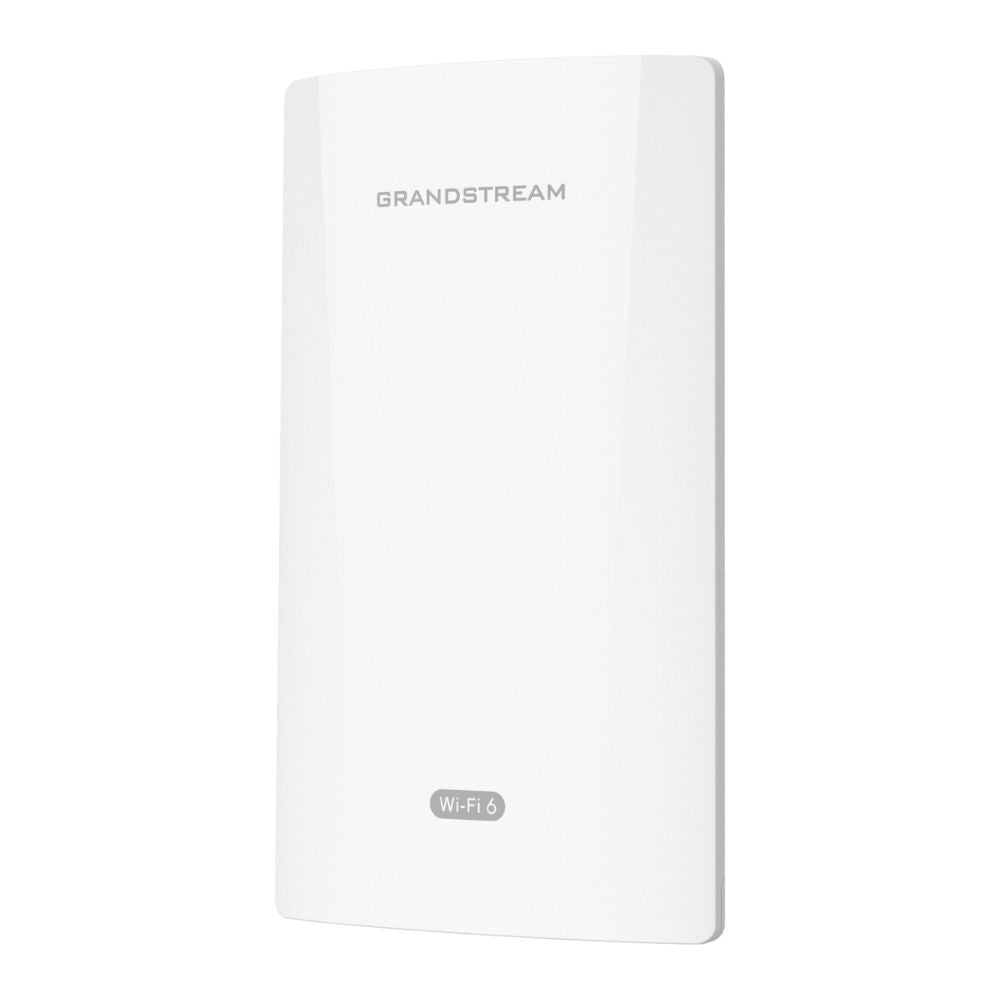

Need to connect buildings, remote sites, or outdoor areas without trenching fiber or dealing with unreliable cables? The Grandstream GWN7302 is the enterprise-grade fixed wireless bridge built exactly for that – delivering fast, stable point-to-point (PtP) or point-to-multipoint (PtMP) links over distances up to 5 kilometers in clear line-of-sight conditions.

This 5GHz Wi-Fi 6 (802.11ax) solution blasts 2.4Gbps aggregate throughput with 2x2:2 MIMO and TDMA technology to cut interference and maximize efficiency, making it perfect for factories linking production floors, construction sites sharing internet/surveillance, warehouses connecting offices to loading docks, campuses extending networks to athletic fields, parking lots, scenic parks, or rural schools/hospitals. With IP66 weatherproofing, dual Gigabit Ethernet ports (PoE in/out), and advanced QoS for low-latency apps like VoIP or video, it keeps your network humming in harsh outdoor environments. Setup is straightforward via web UI, GWN App, or GDMS cloud.

Pros

Serious 5km reach with 2.4Gbps AX speeds for high-bandwidth links

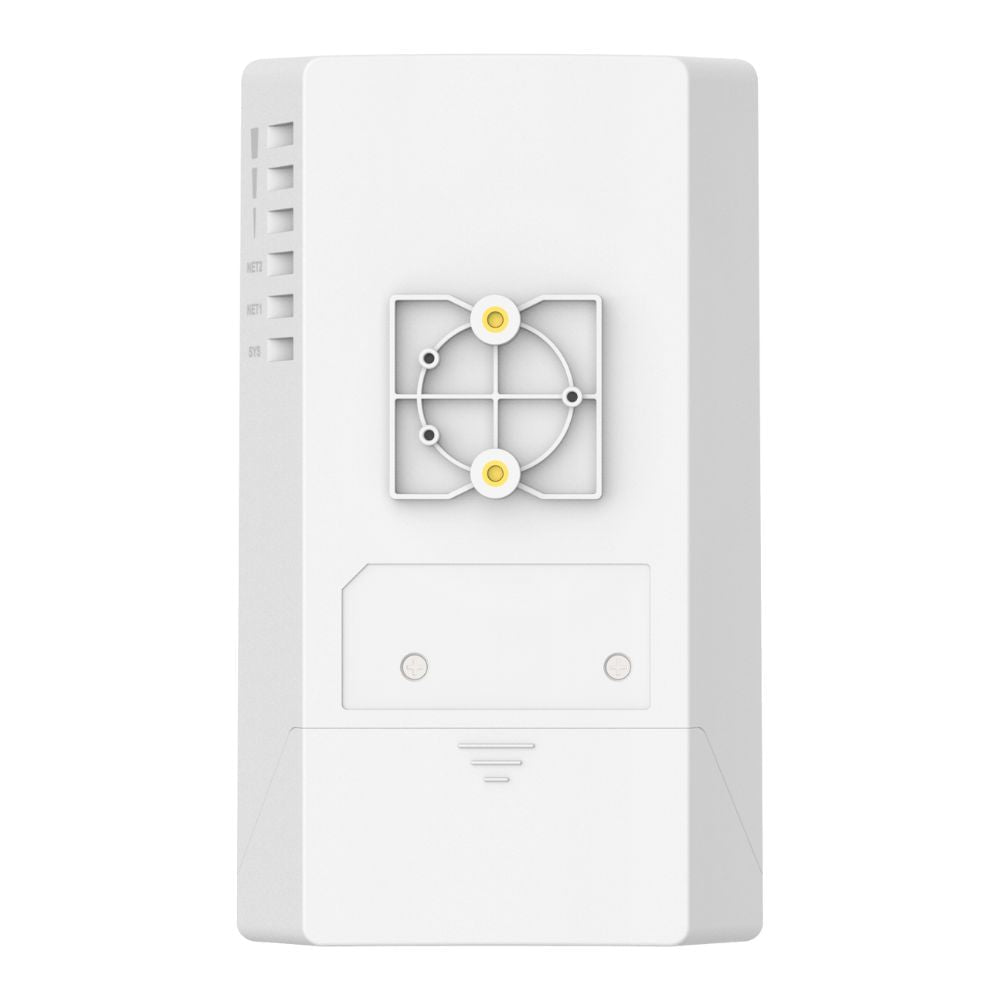

Rugged IP66 build + stainless mounting for Texas heat/rain/dust
TDMA + QoS keeps VoIP/video smooth over distance
PoE in/out flexibility – power cameras or extend networks
Easy management: web, app, or GDMS cloud with SSH tunneling

Cons

Strictly 5GHz single-band – no 2.4GHz fallback for longer/penetrating links
PtMP limited to 1-to-4 – fine for small clusters but scale up carefully
Alignment critical – poor LOS drops performance fast (we test with tools)

Bottom line: If you need to cross roads, fields, or buildings without digging trenches, this outperforms many consumer bridges and integrates seamlessly with Grandstream ecosystems. Zero weather failures in our installs so far.

Grandstream GWN7302 Key Features

2.4Gbps aggregate wireless throughput on 5GHz Wi-Fi 6 (802.11ax)
Single-band 2x2:2 MIMO with TDMA for efficient spectrum use and low interference
Up to 5km coverage range (line-of-sight, environment-dependent)
High-gain 13.5dBi internal antennas with 30° horizontal/vertical beamwidth
Dual Gigabit Ethernet ports: 1x PoE input (802.3af/at), 1x PoE output (up to 25W with DC)
Advanced QoS for prioritizing real-time apps like VoIP, video, surveillance
Supports PtP (one-to-one) and PtMP (1-to-4) modes
IP66 weatherproof rating for harsh outdoor use
Self-adapting power on PoE+ detection
Management: Web UI, GWN App, GDMS cloud with SSH tunneling
LEDs: Signal strength (3x), network status (2x), tri-color status

Comparison to Similar Models

The GWN7302 is Grandstream's dedicated long-range outdoor bridge in the GWN lineup. Here's how it compares to related options:

Model	Frequency / Throughput	MIMO / Range	Ports	PoE In/Out	Best For
GWN7302	5GHz / 2.4Gbps AX	2x2:2 / Up to 5km	2x Gigabit	Yes/Yes	Long-distance PtP/PtMP bridges, outdoor harsh sites
GWN7660	Dual-band Wi-Fi 6	Higher MIMO / ~175m	2x Gigabit	PoE in	Indoor high-density AP coverage
GWN7664	Dual-band Wi-Fi 6	4x4 / ~175m	2.5G + 1G	PoE in	Enterprise indoor dense deployments
(Other brands e.g., Ubiquiti NanoBeam)**	5GHz / Varies	Varies / 5-15km	Gigabit	PoE	Similar long-range, but less integrated with Grandstream VoIP

Choose the GWN7302 for Grandstream ecosystem compatibility and solid 5km performance. For shorter indoor needs, step to GWN766x series; for ultra-long range, consider specialized non-Grandstream gear.

Technical Specifications

Radio Frequency: 5GHz (5150-5850 MHz, region-dependent) MIMO: 2x2:2 Antennas: 2 internal, 13.5dBi gain, 30° H/V beamwidth Channel Bandwidth: 20/40/80/160MHz Data Rates: Up to 2402Mbps (802.11ax), backward compatible TX Power: Up to 26dBm (region/MCS-dependent) Receiver Sensitivity: Down to -92dBm (802.11a @6Mbps) to -52dBm (ax 160MHz)
Coverage Up to 5km (LOS, environment varies) PtMP: 1 master to 4 remotes
Interfaces 1x 10/100/1000 Ethernet (PoE input 802.3af/at) 1x 10/100/1000 Ethernet (PoE output, max 25W with DC input) Reset/Pairing button
Power PoE: 802.3af/at input; DC 24V compatible (16-48V) Consumption: Max 13W
Environmental IP66 weatherproof Operating Temp: -30°C to 60°C Humidity: 5-95% non-condensing
Management & Security Web UI, GWN App, GDMS cloud HTTPS, SSH tunneling

FAQ

How far can the GWN7302 really reach? Up to 5km with clear line-of-sight and proper alignment – real-world often 3-5km depending on terrain, weather, and interference.

Is it truly outdoor-rated? Yes – full IP66 protection against dust and powerful water jets, plus wide temp range for Texas summers/winters.

Can I use it for PtMP with multiple remote sites? Yes – one central unit connects to up to 4 remotes, great for distributing to nearby buildings or cameras.

What power setup works best? PoE+ (802.3at) input recommended for stability; it auto-adapts. For PoE out to devices, use PoE+ or 24V DC for higher output.

Does it work with Grandstream phones or cameras? Perfectly – QoS prioritizes VoIP/video, and PoE out powers compatible devices. Integrates via GDMS for unified management.

Setup tips from The Telecom Spot? Mount high with clear LOS, use signal LEDs for alignment (aim for strongest green). Test throughput early. Enable GDMS for remote monitoring. We do site surveys and configs – contact us for Texas installs.
